Quiet 4 Fan Tray For R4000/r5000 Racks R4000-ft4

Be the first to review this product

Availability: In stock

Only 85 left

Excl. Vat: £135.29 Incl. Vat: £162.35
OR

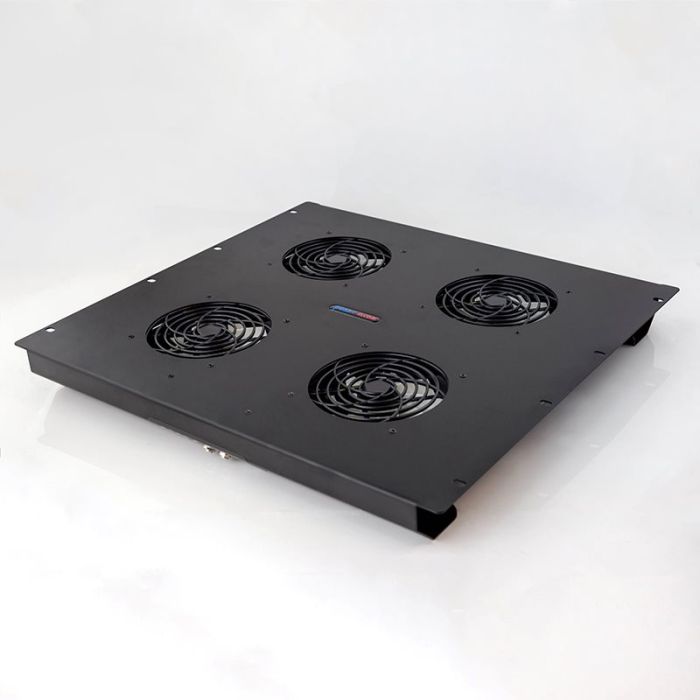

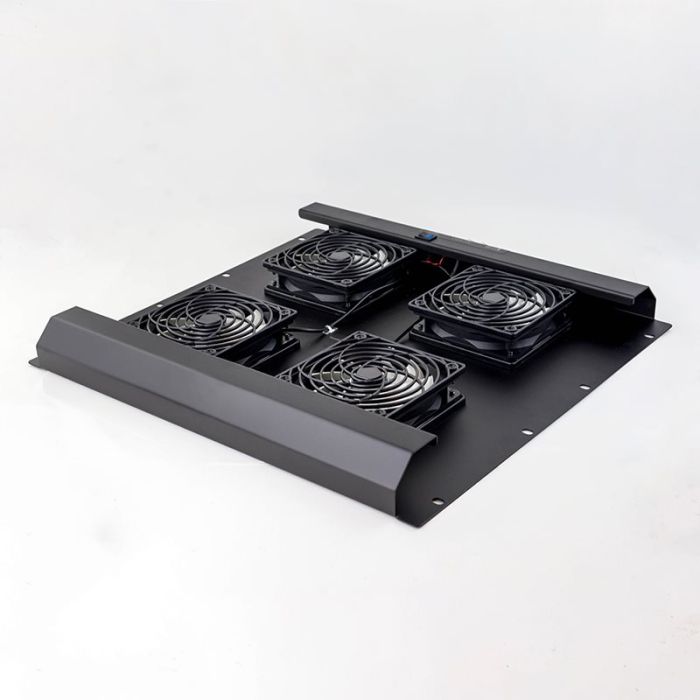

Quiet 4 Fan Tray for R4000/R5000 Racks R4000-FT4 R4000-FT4 By Penn Elcom

Quiet 4 Fan Tray For R4000/r5000 Racks R4000-ft4

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
19 inch Rack Accessories

Details

Ultra-quiet 4 fan tray designed for use in the Penn R4000 & R5000 Server Enclosures. Designed to be fitted in the top of the rack to pull out the hot air and draw up cool air from
the bottom inlets to achieve a chimney effect.

Technical Specification:

Low Noise 22.5dBA (0.3 Sone)
296CFM (504m³/h) @ 1,350RPM
High Static Pressure
4 x 9 Bladed 120mm Fans
12V DC - 1000mA
2 x DC In/Out Sockets
Temperature Sensor Socket
DC in/out sockets
On/Off with a Coloured Indicator Rocker Switch
1A world wide universal PSU supplied
Designed to be Mounted in the R4000/R5000 10U Top Service Area
Black Powder Coated
Dimensions: (OD) 483mm x 444mm x 60mm (19" x 17½" x 1") 10U
Weight: 3.7kgs / 8.15lbs
Fluid Bearings = 2 Year Limited Warranty

Datasheets


Product Datasheet Download

WATCH PRODUCT VIDEO:

Additional Information

SKU FAV-R4000-FT4
Barcode N/A
Manufacturer Penn Elcom
Manfacturer Code R4000-FT4
Series N/A
