Osram Ot 6/200-240/24v Led Power Supply 24v 6w Constant Voltage

Be the first to review this product

Availability: In stock

Only 2 left

Excl. Vat: £16.56 Incl. Vat: £19.87
OR

Led Driver Ot 6/200-240/24v 24v 6w 4008321113269 LEDOT624024 By Osram

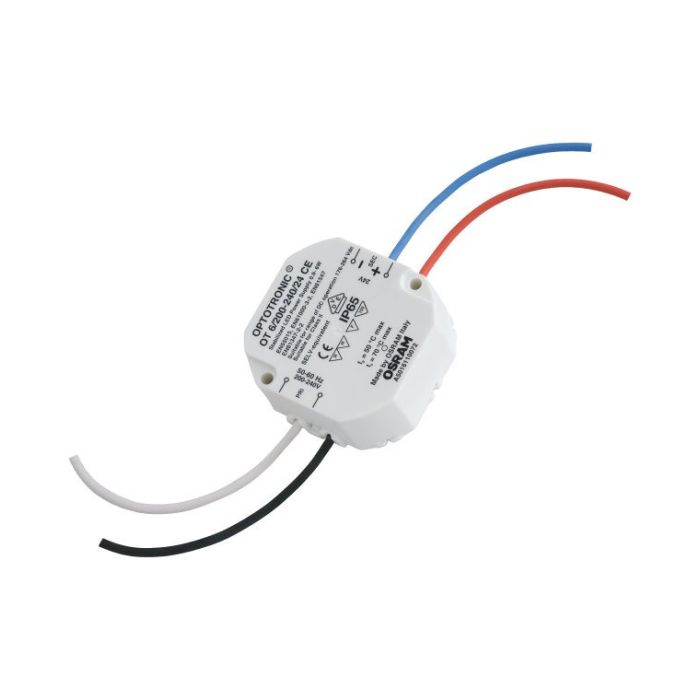

Osram Ot 6/200-240/24v Led Power Supply 24v 6w Constant Voltage

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
LED Power Supply and Control Gear

Details

Product features

24V Constant Voltage Converter
Type of protection IP65
SPS Power supplies compensate for power fluctuations in the Led modules.
Very compact housing, ideal for installation in tight spaces

Product benefits

Very high efficiency and reliability
Versatile scope of application due to output power range of up to 240 W
Constant luminous flux for very low and high temperatures due to Smart Power Supply

Areas of application

Suitable for indoor and outdoor SELV installations
Suitable for use in tight, flat luminaires or installation in suspended ceilings
Outdoor applications only in suitable luminaires

EAN: 4008321113269
Output power: 6 W
Partial load: 0.4 - 6 W
Input voltage: 180 - 254 V
Mains frequency: 50/60 Hz
Output voltage: 24 V
Nominal voltage: 200 - 240 V
Nominal current: 0.08 A
Device power losses (at 230 V): max. 1.5 W
Power factor: min. 0.5
ECG efficiency: 80 %
Inrush current (at 240 V): 15 A
Max. no. of ECGs on circuit breaker 10 A: 30
Max. no. of ECGs on circuit breaker 16 A: 48
Galvanic isolation primary/secondary: 3 kV
Surge capability (L-N): 1 kV
Length: 51 mm
Width: 50 mm
Height: 22 mm
Product weight: 73 g
Cable cross-section, input side: 1 sqmm
Cable cross-section, output side: 1 sqmm
Wire preparation length, input side: 10 mm
Casing material: Plastic
Ambient temperature range: -20 +50 C
Maximum temperature at tc test point: +70 C
Max.housing temperature in case of fault: +100 C
ECG Lifetime: 50000 h
Dimmable: yes, with OPTOTRONIC dimmers
Suitable for fixtures with prot. class: II
Overheating protection: automatic reversible
Overload protection: automatic reversible
Short-circuit protection: automatic reversible
No-load proof: Yes
Maximum wiring length ECG/lamp: 10 m
Type of protection: IP65
Packaging: individual in boxes of 20
Manufacturers Website: www.osram.com/osram_com/products/led-technology/indoor-ecg-for-led-modules-and-dimmers/constant-voltage-non-dimmable/cv-power-supplies-24-v

Datasheets

VDE CertificateDownload
Technical SupportDownload
Product family datasheetDownload
Product DatasheetDownload
Declaration of ConformityDownload
Light is universal - Optotronic LED driversDownload

Additional Information

SKU FAV-LEDOT624024
Barcode N/A
Manufacturer Osram
Manfacturer Code Ot 6/200-240/24v
