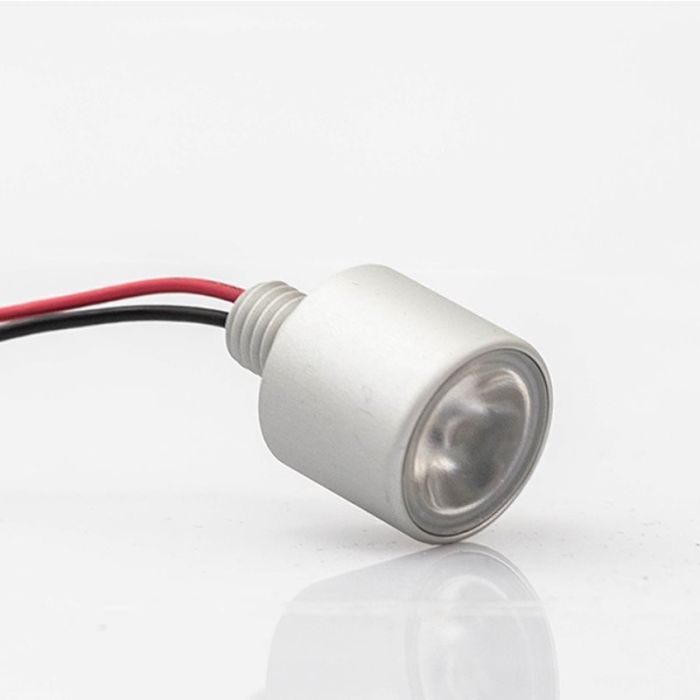

Osram Led De1 -w4f-850- G2 Dragon Eye White 5000k Ip65 Mini Spot Lamp

Osram Led De1-w4f-850-g3 Dragon Eye 5k Ip65 Mini Spot 4052899474772 LEDDE1W4F850

DE1-W3F-850-G3 DRAGON eye Warm White DRAGON eye is an IP65 compact mini light

The DRAGONeye module, which is available in several variants, is a dimmable, IP65 protected (according to DIN EN 60529) module that must be connected in series. It comes with a 500 mm, 2 core connecting cable and is great for accent, orientation or route lighting, and for shelf and furniture illumination. You can use it for LED fittings outside, and you do not need an additional heat sink because it has a metal package for optimal heat removal. DRAGONeye has a narrow beam angle for use as a spot source, and an integrated M10x1.5 thread for simple installation. It shows perfect centering thanks to a flange on the floor of the casing, and gives you low maintenance costs thanks to a life span of up to 70000h. DRAGONeye comes to you with a 5 year guarantee.

Priced per unit; available in any quantity. For best LED driver to match your requirements please see listing below. This shows the minimum and maximum no of Dragon Eyes that can be wired in series to the output of each driver and also the type of control each driver allows.Where the output current is not a fixed value but a range, specific steps have to be taken to setup a fixed 350mA output current. Please get in touch for more information.

Product family features

• Type of protection IP65 according to DIN EN 60529
• The modules can only be connected in series
• Two-core connecting cable (500 mm)
• Dimmable

Product family benefits

Metal package for optimum heat removal

Integrated M10x1.5 thread for simple installation

No additional heat sink required

Narrow beam angle for use as a spot source

Perfect centering thanks to flange on the floor of the casing (diameter 12 mm)

Low maintenance costs thanks to a lifetime of up to 70000 h

5 year guarantee

Applications: For accent, orientation or route lighting, Shelf and furniture lighting, Suitable for outdoor use

Technical spec

EAN: 4052899474772 (was 4052899042872)

Power consumption: 1 W

Input current (DC): 350 mA

Typical forward voltage (DC): 2.9V

Energy consumption: 2 kWh/1000 h

Beam angle: 15 Deg

Colour temperature: 5000 K

Colour appearance: Daylight White

Standard deviation of color matching: <= 3 sdcm

Colour rendering index: 80 Ra

Total useful luminous flux: 108 lm

Nominal useful luminous flux 90 degrees: 103 lm

Luminous intensity: 1300 cd

Rated peak intensity: 3220 cd

Luminous efficacy: 108 lm/W

Starting time: < 0.1 s

Warm-up time (60 %): < 2.00 s

Dimmable: Yes

Energy efficiency class: A++

Diameter: 23.0 mm<

Rated height: 23.00 mm<

Cable length: 500.0 mm

Product weight: 24.00 g

Ambient temperature range: -25 +55 C

Temperature range at storage: -25 +85 C

Type of protection: IP65

Commodity code: 940540999000

Lumen main.fact.at end of nom.life time: 0.70

Nominal lamp life time: 70000 h

Number of switching cycles: 35000
