Neutrik Xlr 3 Pin Female Chassis Aa Series Without Latch Nc3faah1-0

Be the first to review this product

Availability: Out of stock

Excl. Tax: £1.61 Incl. Tax: £1.93

Neutrik XLR 3 Pin Female Chassis AA Series without latch NC3FAAH1-0 CONC3FAAH10 By Neutrik

Neutrik Xlr 3 Pin Female Chassis Aa Series Without Latch Nc3faah1-0

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
Neutrik XLR Chassis

Details

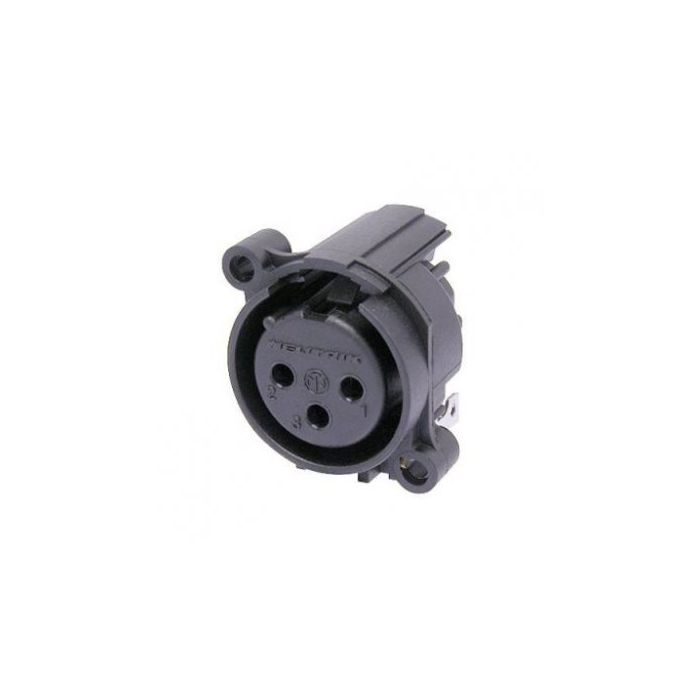

Neutrik XLR 3 Pin Female Chassis AA Series without latch NC3FAAH1-0 CONC3FAAH10

Neutrik 3 pole female XLR receptacle, plastic housing, pin 1 connected direct to chassis and shell ground, horizontal PCB mount. Retention spring instead of latch.
The AA Series is 100% compatible to the current A Series in terms of PCB layout and front panel cut out. New improved contact design for highest durability. High contact pressure. Selective gold plated contact area, where it mates with the male contact. Partial silver plating of the pin which makes contact with the PCB, best solderability. Push lever assembled.
Priced per connector: available in any quantity
Packing information: Box quantity = 100

Additional Information

SKU FAV-CONC3FAAH10
Barcode N/A
Manufacturer Neutrik
Manfacturer Code NC3FAAH10
Series N/A
