Neutrik Nadb9mf D-sub 9 Pin Feedthrough Male Female Connector

Be the first to review this product

Availability: Out of stock

Excl. Vat: £11.96 Incl. Vat: £14.35

Neutrik D-Sub 9 Pin Feedthrough M-F NADB9MF-B CONADB9MF By Neutrik

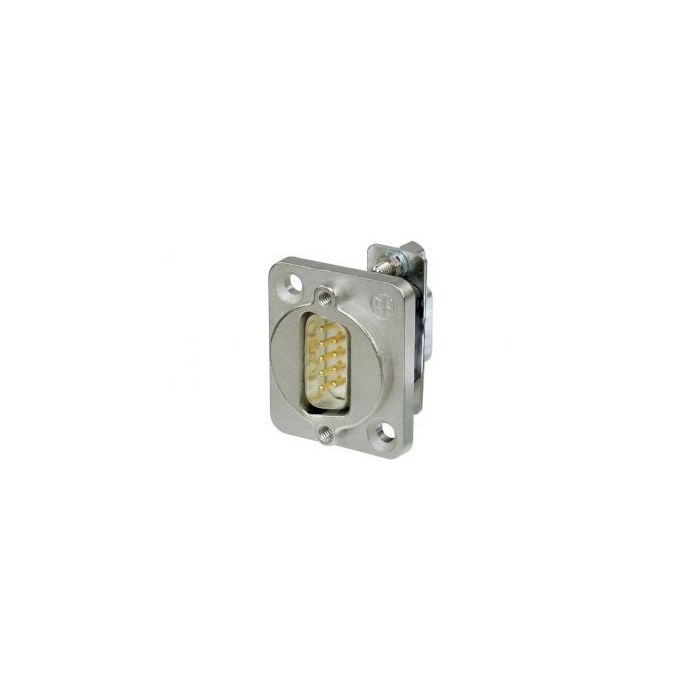

Neutrik Nadb9mf D-sub 9 Pin Feedthrough Male Female Connector

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
Neutrik Data Connectors

Details

9 pole D-SUB feedthrough, male to female, D-shape nickel housing

Features & Benefits
Ideal for audio networking and integration of equipment into video systems.
Universally accepted standard D-shape housing

Contact resistance: 10 mO (inner)
Dielectric strength: 1 kVdc
Insulation resistance: 5 GO
Number of electronical contacts: 9
Rated current per contact: 5 A
Rated voltage: 125 V AC
Wiring: Feedthrough
Chassis shape: D
Contact plating: Au
Contacts: Brass (CuZn39Pb3)
Insert: Steel , tin plated, PBT
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Flammability: UL 94 V-0
Temperature range: -25 ?C to +85 ?C

Datasheets

Product DrawingDownload
Assembly InstructionsDownload

Additional Information

SKU FAV-CONADB9MF
Barcode N/A
Manufacturer Neutrik
Manfacturer Code Nadb9mf
Series No
