Medium Mol® Recessed Butterfly Latch Offset Key Lock L907/927

Be the first to review this product

Availability: In stock

Only 12 left

Excl. Vat: £17.92 Incl. Vat: £21.50
OR

Medium MOL® Recessed Butterfly Latch Offset Key Lock L907/927 L907/927 By First-AV.co.uk

Medium Mol® Recessed Butterfly Latch Offset Key Lock L907/927

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
Catches for Flightcases

Details

First-AV.co.uk Medium MOL® Recessed Butterfly Latch Offset Key Lock L907/927 L907/927

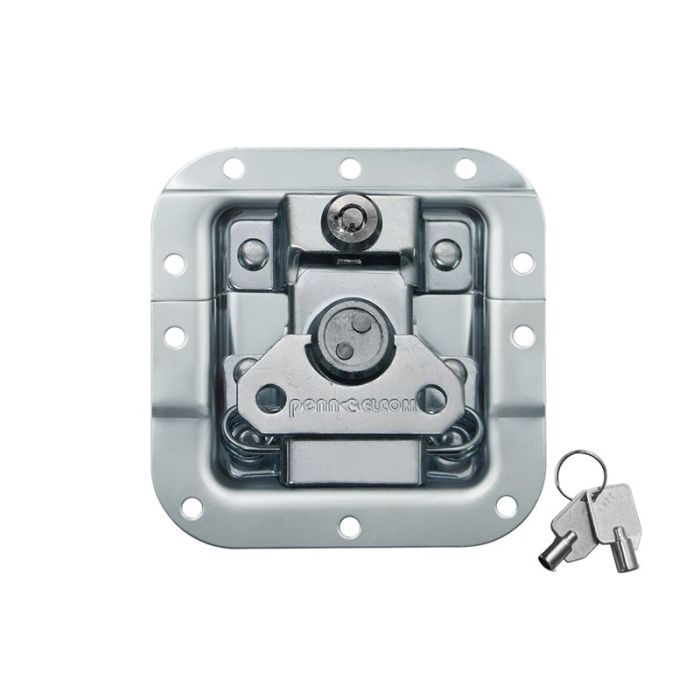

Medium MOL® Recessed Butterfly Latch in Deep 27mm / 1 1/16" Offset Dish with Key Lock

Securely close your case with a Penn Elcom MOL® automatic positioning latch mounted in a medium recessed dish. For use on small to medium-sized cases. The PennBrite zinc plating offers an excellent protection against corrosion with a distinctive bright Penn Elcom finish. The integrated key lock is a simple and convenient solution to add an extra level of security. Each latch comes with two keys. Replacement keys can be purchased separately as needed (see L0927). A 27mm / 1 1/16" offset on each half of the dish accommodates the corresponding edge extrusions and provides a flush and clean looking installation.

Around the globe, the MOL® name is synonymous with high quality and dependability. Invented in 1995, the MOL® range of flight case latches revolutionised the industry and redefined standards in flight case locking. With its patented leaf-spring automatic opening system and its latch retainer that keeps the latch below the level of the dish while in the opened position, the MOL® range has yet to be surpassed in terms of advancement, durability, or prominence.

PRODUCT FEATURES:
 - With Patented MOL® Automatic Positioning Latch System
 - Dish Width: 102mm / 4"
 - Dish Height: 105mm / 4 1/8"
 - Dish Depth: 13mm / 1/2"
 - Offset: 27mm / 1 1/16"
 - Lockable: With Key Lock
 - See L0927 Key for replacement Key
 - Finish: PennBrite
 - Material: 1.2mm / 18 gauge Steel
 - Weight: 0.24kg / 0.53lb
 - Maximum Working Load Capacity: 90kg / 200lb

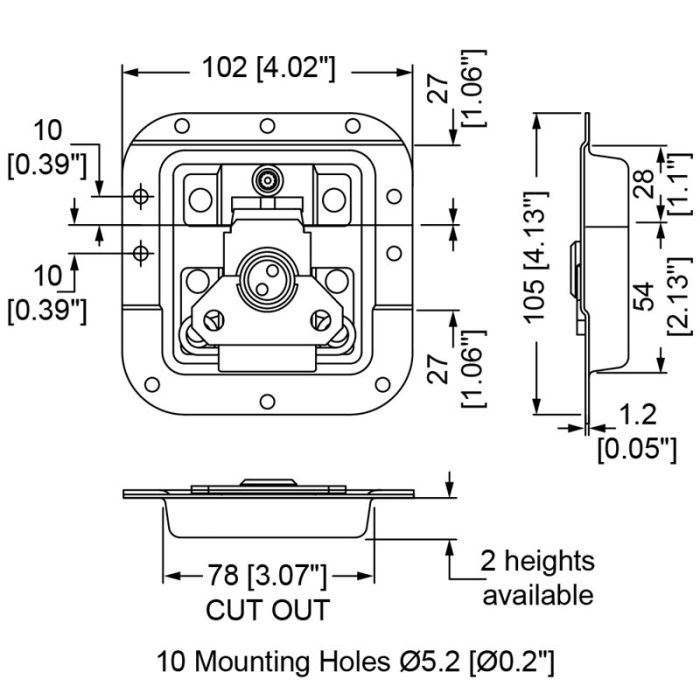

INSTALLATION INFORMATION:
 - Panel Cut-Out Size:
   - Cut-Out Width: 78mm / 3"
   - Cut-Out Height: 54mm + 28mm / 2 1/8" + 1 1/8"
 - From Split to Hole Centre: 10mm / 3/8"
 - Mounting Holes: 10 x 5.2mm / 3/16"
 - Rivets Required for Installation: 10
 - Suits L0906 Backplate
