Led Lfd400t-g1-840-06 Linearlight Flex Diffuse Top 24v 4052899581708

Osram Led Lfd400t-g1-840-06 Linearlight Flex Diffuse Top 24v 4052899953536 LEDLFD400T840

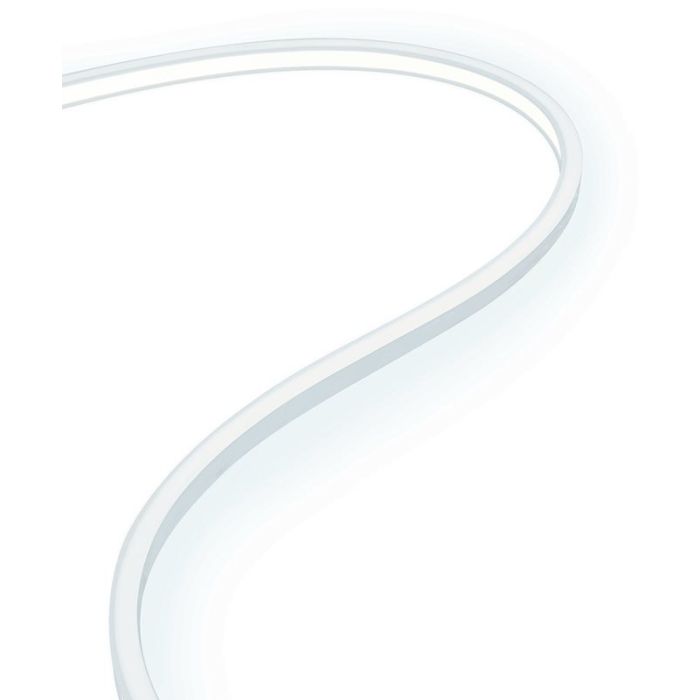

LINEARlight FLEX DIFFUSE 400 Top - LED modules for professional and industrial applications

Osram LFD400T -G1-840-06

Supplied with 1 pre-fitted power connector (FX-DCS-G1-CM2PF-IP67-0500)

Product benefits:

IP67 protection with high performance silicone

Outdoor use possible: UV and salt mist resistant (UV acc. to ISO 4892-2 - Method A, salt mist acc. to IEC 60068-2-52 severity 1)

Product features:

Diffused light lines without visible spots

Flexible and cuttable module to support design freedom

Long operational length per single power feed possible (up to 6m)

Ideal for luminaire designs

Extra strong self-adhesive backside for easy mounting 24V technology for easy dimensioning

Recommended in system use with OPTOTRONIC

Increased reliability due to single piece reel-to-reel technology

Dimmable with PWM technology

Areas of application:

Individual and customized luminaires

Organic shaped luminaires

Architectural Integration e.g. coves, walls

Object integration e.g. handrails

Signage and illuminated advertising

Technical data:

EAN: 4052899953536

Nominal voltage: 24V

Rated wattage: 43.2W

Reverse Voltage: 25V

Input voltage range: 23-25V

Nominal wattage per meter: 7.2W

Luminous efficacy: 57 lm/W

Colour temperature: 4000K

Colour rendering index Ra: >80

Colour appearance: Neutral White

Luminous flux: 2460lm

Luminous flux per meter: 410lm

Beam angle: 120 Deg

Number of LEDs per module: 840

Number of LEDs per meter: 140

Length: 6000 mm

Width: 14.1 mm

Height: 10.8 mm

Product weight: 1040 g

Temperature range in operation: -20 to +65 C

Lifespan (L70/B50): 50000h

Dimmable: Yes

Dimming method: PWM

Lowest bending radius: 100 mm

With end piece: No

With connection set: Yes

Self-adhesive: Yes

Standards: CE/ENEC/10 VDE/EAC/UL

Recognized component according UL 8750
