Led Vf1000-g3-840-05 Value Flex Ip20 4k 24v 4052899525931

Osram Led Vf1000-g3-840-05 Value Flex Ip20 4k 24v 4052899525931 LEDVF1000G3840

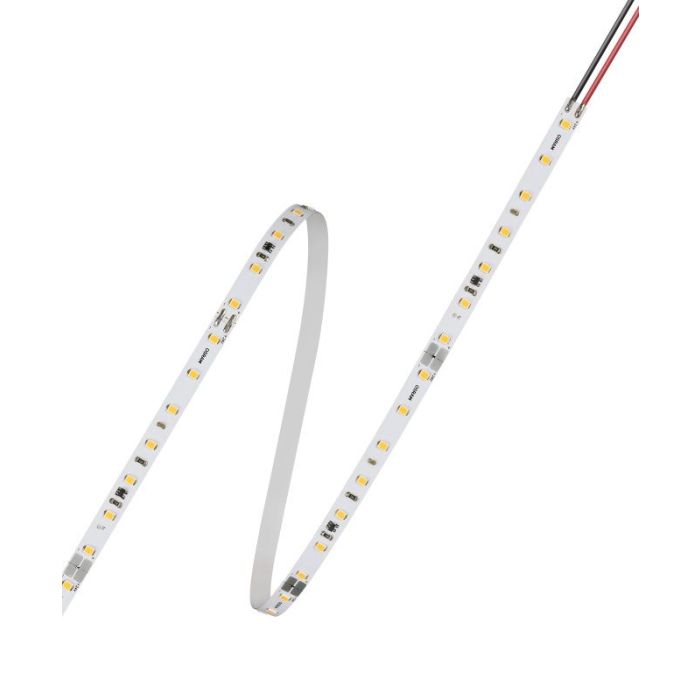

VALUE Flex 1000
VF1000 -G3-840-05

Product benefits:

Energy saving low-power flexible LED strip
Pre-wired LED strip, simple and quick plug-and-play installation
Good light output due to homogeneous LED distance and high color consistency
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
Easy installation with optional track system
Easy to cut and reconnect to the reliable SLIMCONNECT system G2

Product features:

Available with light colour Warm White, Cool White
Luminous flux up to 1000 lm/m
High colour consistency 4 SDCM
Self-cooling
Beam angle per module 120 deg
Dimmable with suitable OPTOTRONIC control gears
Type of protection IP20

Areas of application:

Hospitality
Signage
Architecture lighting
Cove lighting
General illumination
Wall integration
Display cabinet lighting

Equipment / Accessories:

SLIMCONNECTsystem FLEX IP54 connector
Optional Track system
ELEMENT LED drivers
OPTOTRONIC LED drivers

Note:

The lifetime of LED FLEX is reduced if the LEDs get too hot.
Heat management is best achieved with aluminium profiles.

In addition to acting as a heat sink, profiles provide protection and
can often enhance the appearance with use of a diffuser.
All high powered LED flex require heat management and this product
should be used with a suitable profile.

Technical Data:

EAN: 4052899525931
Nominal wattage: 38 W
Nominal wattage per meter: 7.6 W
Reverse Voltage: 25 V
Nominal voltage: 24 V
Input voltage range: 23-25 V
Type of current: DC
Nominal current: 1.58 A
Colour temperature: 4000 K
Light colour (designation): Neutral White
Light colour LED: White
Luminous flux per meter: 1000 lm
Luminous flux: 4500 lm
Luminous efficacy: 132 lm/W
Colour rendering index Ra: >80
Beam angle: 120 Deg
Number of LEDs per meter: 70
Number of LEDs per module: 350
Length: 5000 mm
Width: 8 mm
Height: 1.5 mm
Product weight: 90 g
Length smallest unit: 100 mm
LED pitch: 14.28 mm
Performance temp. acc. to IEC 62717: 40 C
Temperature range in operation at Tc point: -25 +75 C
Ambient temperature range: -25 +55 C
Lifespan: 35000 h
Dimmable: Yes
Self-adhesive: Yes
Lowest bending radius: 50 mm
With connection set: Yes
With end piece: Yes
Standards: CE/Acc. to IEC 62471/Acc. to IEC 60598-1/Acc. to EN 60529/Acc. to EN 62031/Acc. to EN 55015/Acc. to EN 61547
Type of protection: IP20
Energy efficiency class: A+
Energy consumption: 38 kWh/1000h
Temperature range at storage: -30 +85 C
