Led Lf800s-g3-850-10 Shortpitch 10m/reel 5000k 24v G3 4052899953147

Be the first to review this product

Availability: In stock

Only 12 left

Excl. Vat: £280.83 Incl. Vat: £337.00

Led Lf800s-g3-850-10 Shortpitch 10m/reel 5000k 24v G3 4052899953147 LEDLF800S850 By

Led Lf800s-g3-850-10 Shortpitch 10m/reel 5000k 24v G3 4052899953147

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
LED Flex and Modules

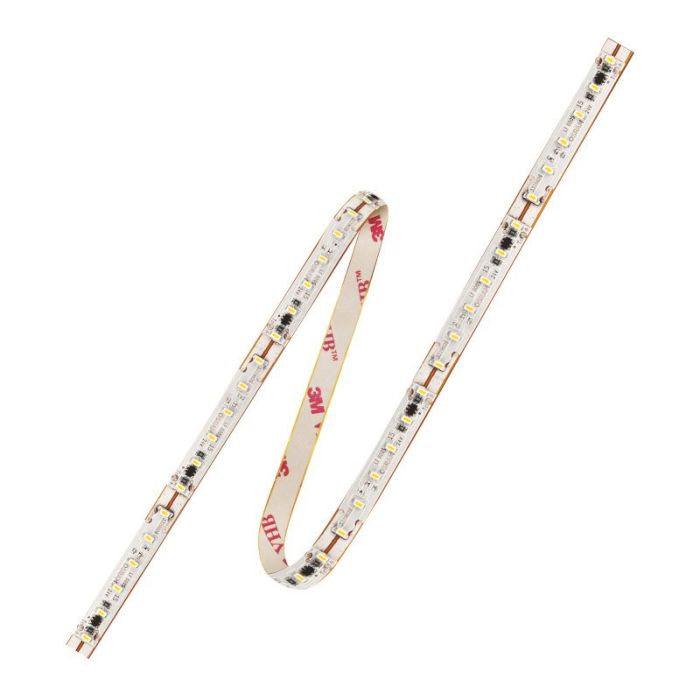

LF800S-G3-850-10 LINEARlight Flex ShortPitch 3rd Generation
Product Benefits:
Very small LED spacing
Great design freedom thanks to flexibility and cuttability of module
Simple mounting and connection
Toolless connection with the optional SLIMCONNECTsystem G2
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
Product Features:
Flexible and cuttable LED strip
Luminous flux: up to 850 lm/m
Module efficacy: up to 99 lm/W
Dimmable with PWM technology
Fine White
Edge coupling
Small coving
Path lighting
Contour accent lighting
Advertising and lettering
Priced per reel, can be supplied to required length upon request!
* For conditions and detailed information, visit
EAN: 4052899953147 (was 4008321973917)
Nominal voltage: 24 V
Nominal current (DC): 3.6 A
Power consumption: 89 W
Nominal wattage per meter: 8.6 W
Reverse voltage: 25 V
Voltage range: 23-25 V
Energy consumption: 86 kWh/1000h
Colour temperature: 5000 K
Colour appearance: Cool White
Colour rendering index: >80 Ra
Light colour LED: white
Luminous flux: 8500 lm
Luminous flux per meter: 850 lm
Luminous efficacy: 99 lm/W
Beam angle: 120 Deg
Size of flex: - (L x W x H): 10000 x 8 x 2.1 mm
Size of smallest unit 6 LED - (L x W): 50 x 8 x 2.1 mm
Lifespan (L70/B50, Tp Rated): 60000 h
Number of LEDs per module: 1200
Number of LEDs per meter: 120
Dimmable: Yes
Dimming Method: PWM (Pulse width modulation)
Energy efficiency class: A+
Packaging: individual boxes in packs of 8
High colour consistency: Fine White (3.5 SDCM)
Warranty: 5 Years*
Adhesive tape on backside: 3M RP16P
Complementary systems: SLIMCONNECT system 08 - G2, SLIM TRACK, OPTOTRONIC
Certifications: CE, UL Recognized, VDE, ENEC10
Operating temperature at Tc-Point: -30C +75C
Storage temperature: -40C +85C
Ambient temperature (rated): 25C
Ambient temperature Ta (range): -30 +55C
