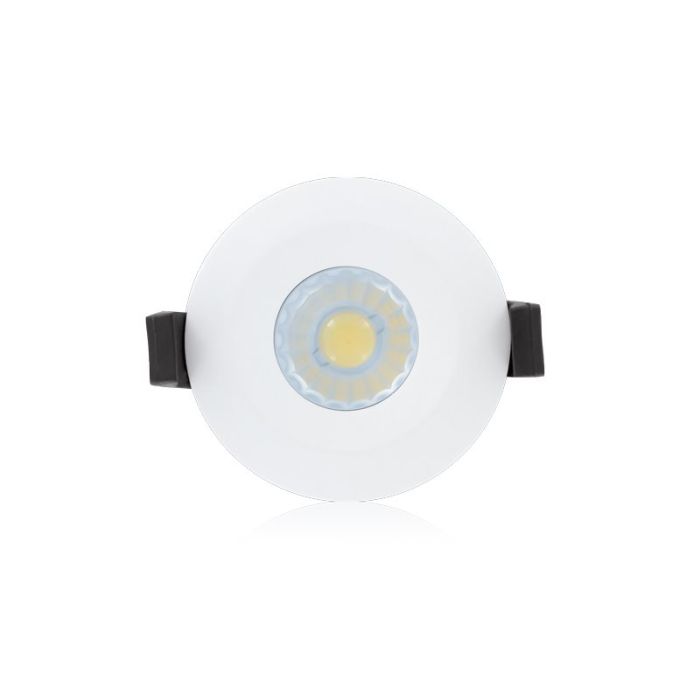

Led Fire Rated Downlight 6w 3k 38deg Dim 5055788223382
Led Fire Rated Downlight 6w 3k 38deg Dim 5055788223382 LEDDLPFR736D3K By Integral
Integral Led Fire Rated Downlight 6w 3k 38deg Dim 5055788223382 LEDDLPFR736D3K
Low-Profile 70mm-75mm cut-out IP65 Fire Rated Downlight 6W (40W) 3000K 430lm 38 deg beam angle Dimmable
These low-profile lamps are fire rated to 30, 60 and 90 minutes, Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E.
Warm White and Cool White colour temperature options and dimmable or non-dimmable options are available. Importantly, these lamps are IP65 rated and designed to offer the safety and quality of other Fire Rated Downlights but with a lower price-tag.
Product features
Warm White
430 Lumens
Dimmable
Low-profile body
Matt white finish
Technical Data
EAN: 5055788223382
Partcode: ILDLFR70B001
Range Name: Low-profile
Application: Indoor, General Lighting
Market Segment: Commercial indoor, Residential indoor
Product Type: Fire Rated
Warranty: 3 Yrs
CE / RoHS: Yes
Product Finish: Matt white
Spot Type: COB
Optic: Clear Refractor
Material: Aluminium alloy, Iron, Intumescent material, Steel
Construction: Extruded Aluminium heat-sink, Iron body, Steel springs and mounting plate
Length: 45 mm
Diameter: 85 mm
Weight (Unpackaged Single Unit): 280 g
Cut Out Diameter: 70-75 mm
Lum. Fixing: Recess mounted
Fire Rating: 30, 60, 90
Voltage Range: 220-240 V
Power Consumption: 6.0 Watts
Driver included: Yes
Current: AC
Ampage: 300 mA
Frequency Range: 50/60 Hz
Wattage Equivalent: 40 Watts
Power Factor: >= 0.90
Dimming: Dimmable with compatible dimmers
Compatible Dimmer(s): Varilight JQP401W
LVD Certified: Yes
EN: EN-60598
Lumens: 430 lm
Lumens per Watt: 72.0 lm/W
Correlated Colour Temperature (CCT): 3000 k
Beam Angle: 38 Deg
Colour Temperature: Warm White
Colour Rendering Index (CRI): >= 80
LED Type: Chip on board (COB)
Instant on - Less than 1 second: Yes
Lifetime: 25000 hrs
Switching Cycles: > 12,500
Lowest Operating Temperature: -20 C
Maximum Operating Temperature: 45 C
IP (Ingress Protection) Rating: IP65
Hg 0% (Mercury Free): Yes
Brand | Integral |
---|---|
Barcode | 5055788223382 |
Manfacturer Code | LEDDLPFR736D3K |
