20 Way Uk Vertical Rack Mount Pdu Pdu20-uk

Be the first to review this product

Availability: In stock

Only 99 left

Excl. Vat: £50.65 Incl. Vat: £60.78
OR

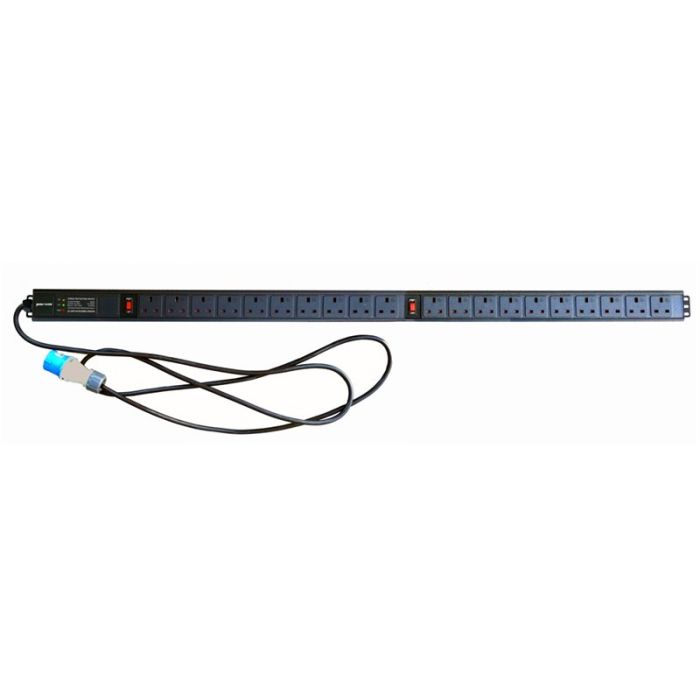

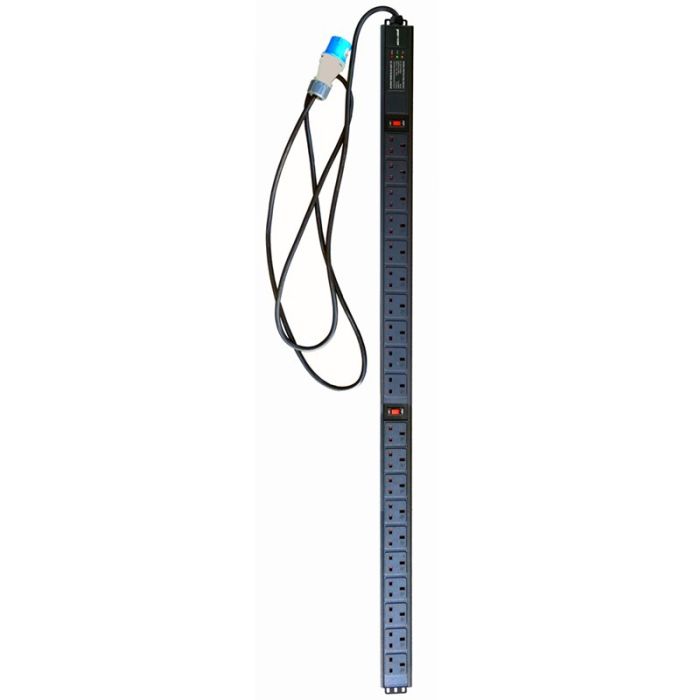

20 Way UK Vertical Rack Mount PDU PDU20-UK PDU20-UK By Penn Elcom

20 Way Uk Vertical Rack Mount Pdu Pdu20-uk

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
19 Inch Rack

Details

Penn Elcom 20 Way UK Vertical Rack Mount PDU PDU20-UK PDU20-UK

20 Way UK Vertical Rack Mount PDU

Featuring Surge & Lightning Strike Protection,
with Dual 8A Over Current Trips

This unit is designed to provide a versatile hook-up for the
distribution of AC power within multimedia racking applications.

Input - 16A
230V Blue C-FORM IP44 Input Plug on a 2M lead
Output - AC
20 Outlets 16A-230V (UK1-13R) BS1363A Type G Shuttered Sockets
Protection 2 x 8A Over Current Trip Switches, with Surge & Lightning Strike protection.
Ground Fault Indicator
Earth Link M3 Terminal Point for Rack Grounding on the rear

Usage
Nominal Voltage: 230V
Usable Voltages 200V
230V
Frequency: 50/60HZ
Max. A/C Output: Current 16A
Case Size: 47 x 62 x 1293mm / 1.85" x 2.44" x 50.90"
Weight: 3Kg / 6.6lbs

Compliance All components used in this unit conform to current RoHS,
CE certification BS1363A, BS1362, SASO 2203
(EMI:EN55022 (CISPR22) Class B; EN61000-3-2,3
EMS:EN61000-4-2,3,4,5,6,8,11; Light industry level, criteria A)

Additional Information

SKU FAV-PDU20-UK
Barcode N/A
Manufacturer Penn Elcom
Manfacturer Code PDU20-UK
Series N/A
