1m Kit 12mm Wide Very Slim Shallow Profile Ledal35

Be the first to review this product

Availability: Out of stock

Excl. Vat: £4.38 Incl. Vat: £5.26

1m Kit 12mm wide Very Slim Shallow Profile LEDAL35 LEDAL35 By First-AV.co.uk

1m Kit 12mm Wide Very Slim Shallow Profile Ledal35

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
LED Profile Accessories

Details

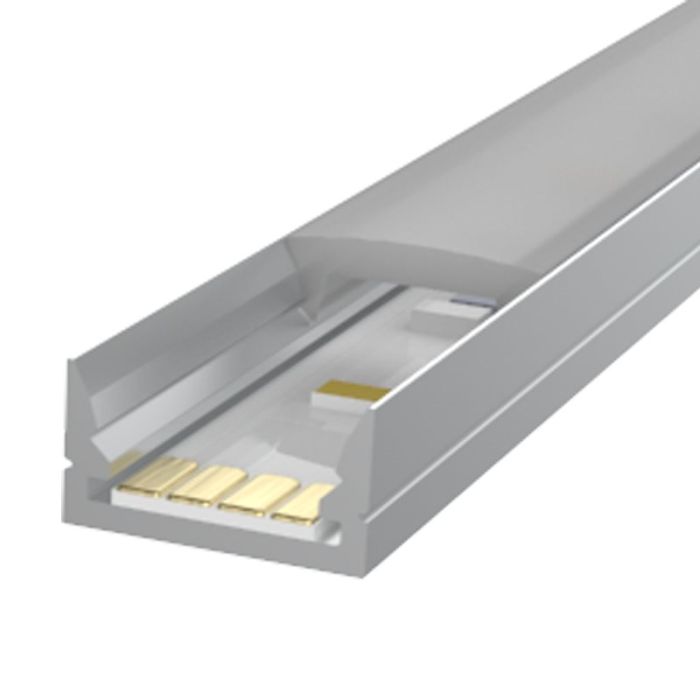

First-AV.co.uk 1m Kit 12mm wide Very Slim Shallow Profile LEDAL35 LEDAL35

ery slim, shallow and discrete aluminium extrusion suitable for LED strips not wider than 8mm. Where no profile has gone before!
The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length.

Included in the KIT:

LEDAL35A1M - 1M anodized aluminium extrusion
LEDAL35DC1M - 1M diffuse cover
LEDAL35EC - 1x Grey End Cap without hole
LEDAL35ECH - 1x Grey End Cap with hole for cable entry
LEDAL35MB - 2x Metallic Mounting Brackets



Aluminium anodized track for LED Flex or LED modules
Low weight
Easy and fast assembly and connection
Suitable for LED strips not wider than 8 mm
Ideal for tinny spaces

Advantages:

Excellent heat sink providing long life and reliability for LED
Easy installation of the LED Flex or modules
1 year Warranty.

Application area:

Edge lighting;
Strip lighting;
Cove lighting;
Anywhere LED Flex or an LED module needs extra support.

Other options available:

LEDAL35B - Black version
LEDAL35W - White version
LEDAL35M2 - 2M anodized version (grey)
LEDAL35M3 - 3M anodized version (grey)

Specifications:

Height: 7 mm
Length: 1000 mm
Material: 6063-T5 anodized aluminium
Warranty: 1 year
Width (External): 12 mm
Width (Internal): 10.1 mm
Width (Opening): 8 mm
Base thickness: 1.1 mm
Cover material: Polycarbonate
Cover assembly method: Slide or clip in

Additional Information

SKU FAV-LEDAL35
Barcode N/A
Manufacturer First-AV.co.uk
Manfacturer Code LEDAL35
Series N/A
