First-AV.co.uk XLR 3 Pin Female Chassis AA Series Shell/Gnd separated NC3FAAV2 CONC3FAAV2

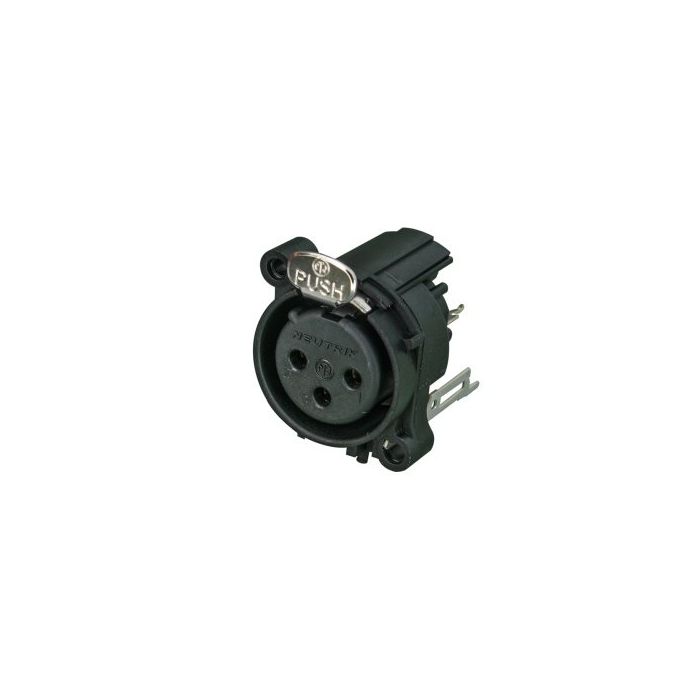

Neutrik 3 pole female XLR receptacle, plastic housing, pin 1 separated from chassis and ground, vertical PCB mount.
The AA Series is 100% compatible to the current A Series in terms of PCB layout and front panel cut out. New improved contact design for highest durability. High contact pressure. Selective gold plated contact area, where it mates with the male contact. Partial silver plating of the pin which makes contact with the PCB, best solderability. Push lever assembled.
Priced per connector: available in any quantity
Packing information: Box quantity = 100
