Rean Rt3mc-b 3 Pole Tiny Xlr Male Cable Connector

Be the first to review this product

Availability: In stock

Excl. Vat: £2.13 Incl. Vat: £2.56
OR

Tiny 3 Pole XLR Male Cable RT3MC-B CORT3MCB By Rean

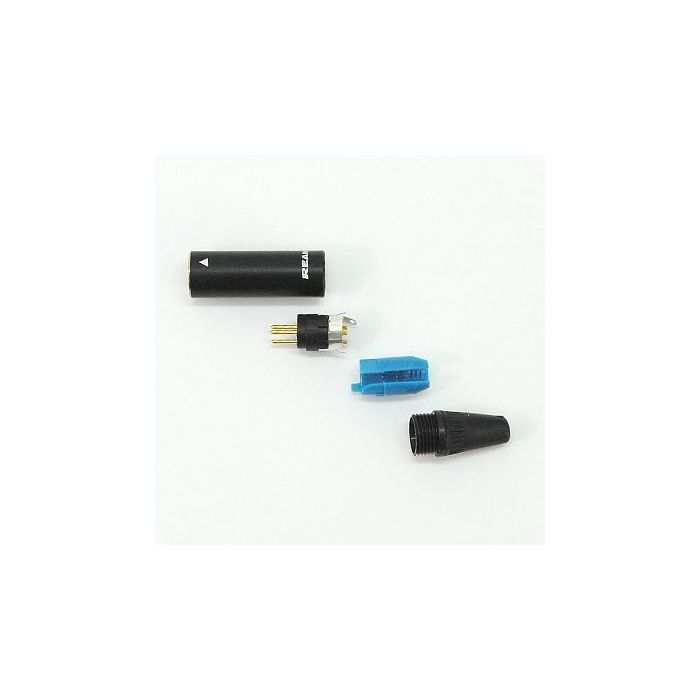

Rean Rt3mc-b 3 Pole Tiny Xlr Male Cable Connector

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
Neutrik Inline XLR Connectors

Details

Rean Tiny 3 Pole XLR Male Cable RT3MC-B CORT3MCB

3 pole TINY xlr male cable connector, black metal shell, gold plated contacts, bulk packaging available RT3MC-B
Title
RT3MC-B
Gender
male
Electrical
Contact resistance
< 5 mO (inner)
Dielectric strength
> 0.5 kVdc
Insulation resistance
> 1 GO
Rated current per contact
< 5 A
Mechanical
Cabel O.D.
2.0 - 4.5 mm
Lifetime
> 1000 mating cycles
Wiresize
0.22 mm?
Wiresize
24 AWG
Wiring
Solder contacts
Material
Bushing
ABS
Contact plating
Au
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6 30 % GR)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black
Strain relief
PVC
Environmental
Solderability
Complies with IEC 68-2-20
Temperature range
-30 ?C to +85 ?C

Additional Information

SKU FAV-CORT3MCB
Barcode N/A
Manufacturer Rean
Manfacturer Code Rt3mc-b
Series No
