Osram Lf06s-w3f-840 Led Linearlight Flex Shortpitch 58w 24v 4000k

LF06S-W3F-840 LINEARlight Flex ShortPitch

Features

Smallest unit of 6 LEDs can be cut out at regular intervals without damaging the rest of the module
Dimmable by pulse width modulation (PWM)
Compact and powerful LED light source
Available in white, 5 colour temperatures
One reel can run on one OT 75W
Only parallel connection allowed

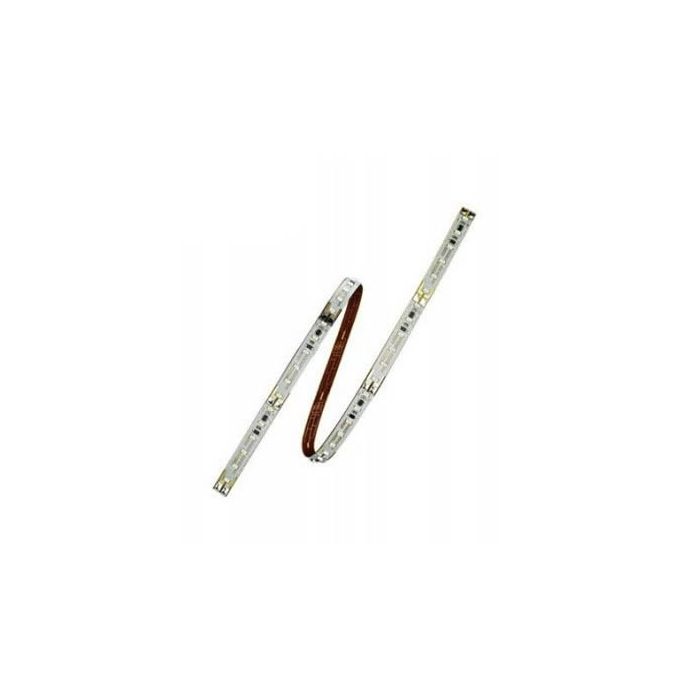

Linear separable LED strip on flexible printed circuit board with self-adhesive back
Entire Module consists of 720 LEDs
Easy connection with optional CONNECTsystem LF-xx Flex:
Feeder LF-2PIN Flex, connector LF-CONN-10 Flex and LFCONN-150 Flex.

Applications
Edge lighting of transparent or diffused materials
Cove-Lighting
Linear illumination

* For conditions and detailed information, visit www.osram.com/system-guarantee.

EAN: 4008321973900
Nominal voltage: 24 V
Nominal current (DC): 2.4 A
Power consumption: 58 W
Power consumption per m: 9.7 W
Reverse voltage: 25 V
Voltage range: 23-25 V
Energy consumption: 58 kWh/1000h
Colour temperature: 4000 K
Colour appearance: Daylight
Colour rendering index: > 80 Ra
Light colour LED: white
Luminous flux: 5076 lm
Luminous flux per meter: 850 lm
Luminous efficacy: 88 lm/W
Beam angle: 120 Deg
Size of flex: - (L x W x H): 6000 x 8 x 2.1 mm
Size of smallest unit 6 LED - (L x W): 50 x 8 x 2.1 mm
Temperature range in operation: -30 - +75 C
Lifespan (L70/B50): 50000 h
Number of LEDs per module: 720
Number of LEDs per meter: 120
Dimmable: Yes
Energy efficiency class: A++
Packaging: individual boxes in packs of 8
High colour consistency: 3 SDCM
Warranty: 5 Years*
Manufacturers Website: www.osram.com/osram_com/products/led-technology/light-engines-and-modules/flexible-led-modules/flexible-led-modules-for-professional-and-industrial-applications/linearlight-flex-shortpitch
