Neutrik Xlr 3 Pin Female Chassis Dlx Crimp Version Nc3fd-lx-ha

Be the first to review this product

Availability: In stock

Excl. Vat: £3.60 Incl. Vat: £4.32
OR

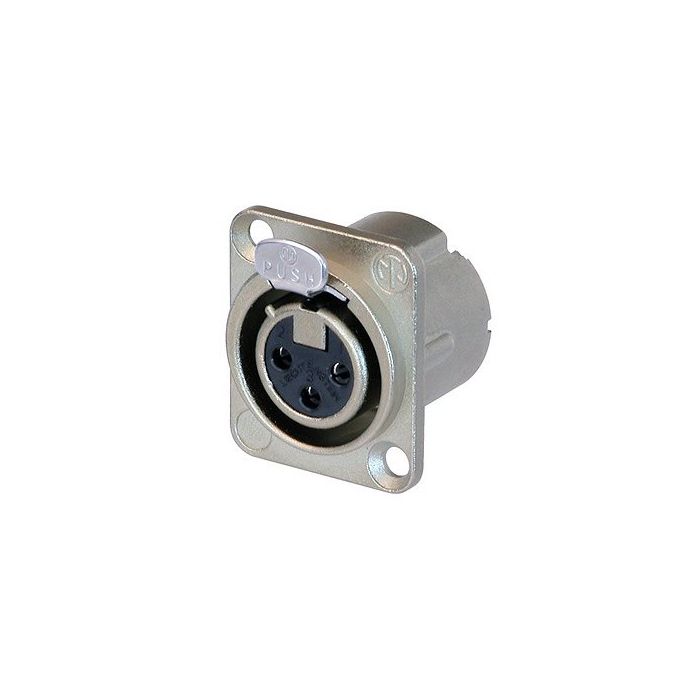

Neutrik XLR 3 Pin Female Chassis DLX Crimp version NC3FD-LX-HA CONC3FDLXHA By Neutrik

Neutrik Xlr 3 Pin Female Chassis Dlx Crimp Version Nc3fd-lx-ha

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
Neutrik XLR Chassis

Details

Neutrik XLR 3 Pin Female Chassis DLX Crimp version NC3FD-LX-HA CONC3FDLXHA

NC3FD-LX-HA

3 pole female receptacle, crimp termination, nickel housing, silver contacts
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.

All metal housing offers best overall RF protection and electromagnetic shielding
Crimp termination with standard B-crimp tool (B-crimp acc. IEC 60352-2)
Gastight and Solderless connection (RoHS compliant)
New duplex ground contact for excellent contact integrity between chassis and cable connector
Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
Optional connection to easily join pin1 to chassis ground

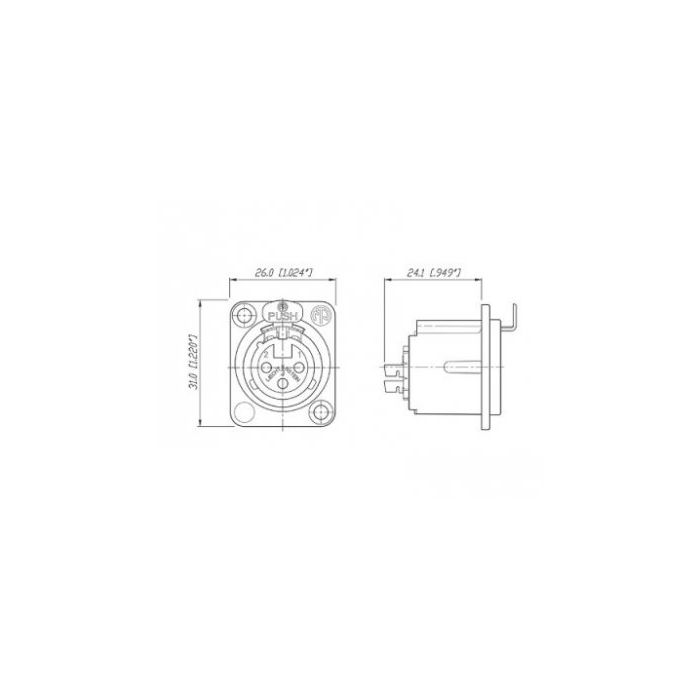

D-style housing provides installation compatibility with industry standard D mounting dimensions
Rated current per contact: 1 A
Rated voltage: 50 V
Crimp size: B-crimp acc. IEC 60352-2
Wire size: 24 - 22 AWG

Additional Information

SKU FAV-CONC3FDLXHA
Barcode N/A
Manufacturer Neutrik
Manfacturer Code NC3FDLXHA
Series N/A
