Neutrik Optical Chassis NO2-4FDW-A CONO24FDWA

Optical Chassis

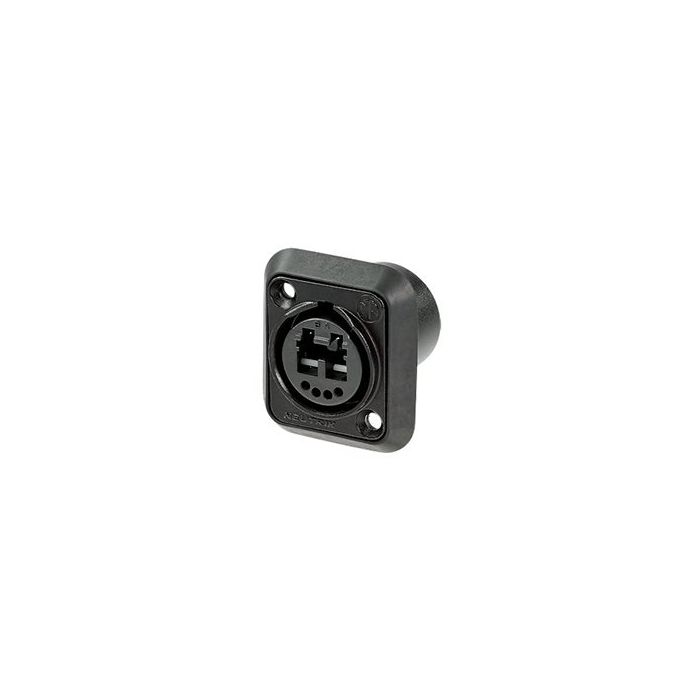

Chassis connector with black chromium plating, 4 solder contacts and 1 LC-Duplex feedthrough socket, waterproof acc. to IP65, front panel mount

The chassis connector acts as a feed-through allowing simplified installations by connecting a conventional LC-Duplex on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection.

Technical Specifications:

- Contact resistance: < 7 mO (inner)
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 2 GO (initial)
- Rated current per contact:6 A
- Rated voltage: 50 V (1)
- Insertion force: < 45 N
- Withdrawal force: < 45 N
- Lifetime: > 5000 mating cycles
- Locking force: 1000 N
- Locking device: Push-Pull
- Mounting direction: front
- Chassis shape: D
- Contacts: Bronze (CuSn6)
- Insert: Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Black chromium
- Split sleeve: ceramics
- Temperature range: -40 C to +75 C
