Neutrik Nmj6hc-s 1/4" Stereo Jack Socket Connector

Be the first to review this product

Availability: In stock

Excl. Vat: £1.84 Incl. Vat: £2.21
OR

Neutrik 1/4" Stereo Jack NMj6HC-S CONMJ6HC-S By Neutrik

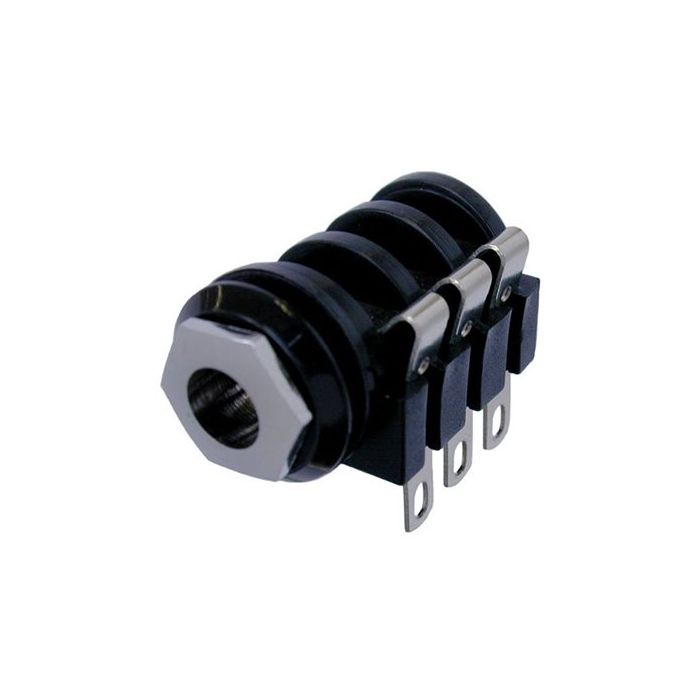

Neutrik Nmj6hc-s 1/4" Stereo Jack Socket Connector

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
Neutrik Jack Chassis Mount Connectors

Details

1/4" stereo jack, switched, with chrome ferrule and standard solder lugs, mounting nut included

Wide body and extremely durable contacts

Mates with all stereo A-gauge plugs acc. EIA RS-453 standard

Connection Type: Jack
Gender: Female
Contact resistance: < 15 mO (inner)
Comment: < 30
Dielectric strength: 1 kVdc
Insulation resistance: 1 GO @ 500 V dc
Rated current per contact: 3 A
Rated current per contact: 0,50 A @ 50 V (Switch contact)
Switching contacts: 3
Insertion force: < 20 N
Withdrawal force: < 10 N
Lifetime: > 10000 mating cycles
Panel thickness: < 4.7 mm
Wiring: Horizontal PCB mount
Locking device: Retention spring
Mounting direction: Rear
Chassis shape: 11.4 mm
Material: Cap / Nut / Washer
Contact plating: 2 ?m Ag
Contacts: Bronze (CuSn6)
Shell: Polyamide (PA 6.6 15 % GR)
Environmental: Standard compliance
Solderability: Complies with IEC 68-2-20
Temperature range: -25 ?C to +70 ?C


Datasheets

Product DrawingDownload

You may also be interested in the following product(s)

Neutrik Jack Socket 6.3mm Stereo Switched Pcb Nmj6hfd2 Connector

Neutrik Jack Socket 6.3mm Stereo Switched Pcb Nmj6hfd2 Connector

Excl. Vat: £1.65 Incl. Vat: £1.98


Additional Information

SKU FAV-CONMJ6HC-S
Barcode N/A
Manufacturer Neutrik
Manfacturer Code Nmj6hc-s
Series No
