Neutrik Neutricon Cable Connector With Locking Device Sc8

Be the first to review this product

Availability: In stock

Excl. Vat: £5.63 Incl. Vat: £6.76
OR

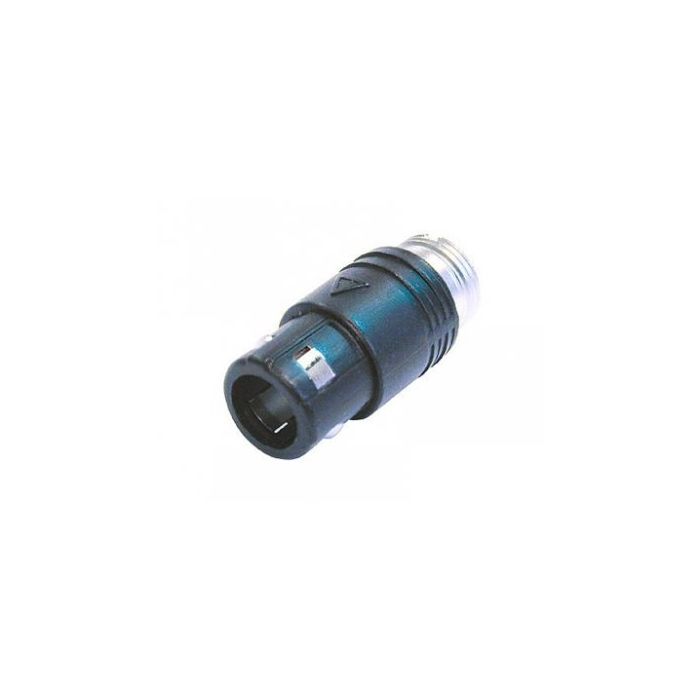

Neutrik NeutriCON Cable Connector With Locking Device SC8 CONSC8 By Neutrik

Neutrik Neutricon Cable Connector With Locking Device Sc8

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
Neutrik MiniCon Connectors

Details

Neutrik NeutriCON Cable Connector With Locking Device SC8 CONSC8

NeutriCON Cable Connector With Locking Device

Neutrik NeutriCON Female cable connector housing, black coated, 180? coding.

The modular system of the miniCON series offers the possibility to assemble a desired connector from a wide range of various parts. Including additional parts for special versions (e.g. cable connector extension, crimp set, ...).

The neutriCON connectors are designed for multipin/industrial applications in harsh and demanding environment. The very robust all metal circular connector offers easy and screwless assembly, flexible part combination and a push-pull locking mechanism.

Features & Benefits:

- Contact configuration can be selected from 1 to 8 contacts
- Easy assembly: Contact soldering / crimping in disassembled condition avoids awkward wiring of high density contacts.
- Precise and robust all metal housing
- Push-pull self-locking system
- Coding system possible (polarization)

Technical Specifications:

- Number of contacts: 1 - 8 user selectable
- Rated current - solder contact: 7.5 A
- Rated voltage (VDE 0110, section A): 50 V ac
- Dielectric strength: 1500 V dc
- Contact resistance: = 2 mOhm
- Insulation resistance after damp heat test (IEC 68-2-30): = 5*108 Ohm
- Box quantity 100 pieces

Additional Information

SKU FAV-CONSC8
Barcode N/A
Manufacturer Neutrik
Manfacturer Code NSC8
Series N/A
