Neutrik Neutricon Cable Connector/ Locking Device 90 Degrees Sc81

Be the first to review this product

Availability: In stock

Only 96 left

Excl. Vat: £5.45 Incl. Vat: £6.54
OR

Neutrik NeutriCON Cable Connector/ Locking Device 90 Degrees SC81 CONSC81 By Neutrik

Neutrik Neutricon Cable Connector/ Locking Device 90 Degrees Sc81

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
Neutrik MiniCon Connectors

Details

Neutrik NeutriCON Cable Connector/ Locking Device 90 Degrees SC81 CONSC81

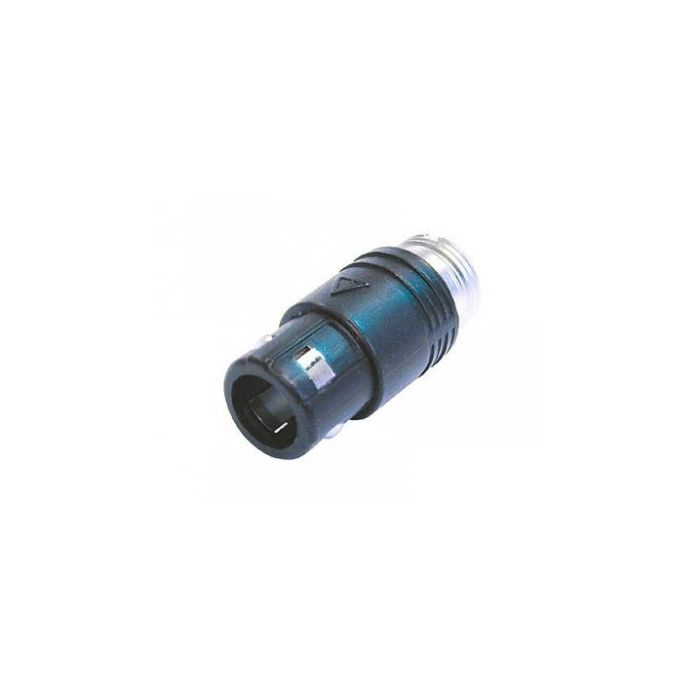

NeutriCON Cable Connector/ Locking Device 90 Degrees

Neutrik NeutriCON Female cable connector housing, black coated, 90o?coding.

The modular system of the miniCON series offers the possibility to assemble a desired connector from a wide range of various parts. Including additional parts for special versions (e.g. cable connector extension, crimp set, ...).

The neutriCON connectors are designed for multipin/industrial applications in harsh and demanding environment. The very robust all metal circular connector offers easy and screwless assembly, flexible part combination and a push-pull locking mechanism.

Features & Benefits:

- Contact configuration can be selected from 1 to 8 contacts
- Easy assembly: Contact soldering / crimping in disassembled condition avoids awkward wiring of high density contacts.
- Precise and robust all metal housing
- Push-pull self-locking system
- Coding system possible (polarization)

Technical Specifications:

- Number of contacts: 1 - 8 user selectable
- Rated current - solder contact: 7.5 A
- Rated voltage (VDE 0110, section A): 50 V ac
- Dielectric strength: 1500 V dc
- Contact resistance: = 2 mOhm
- Insulation resistance after damp heat test (IEC 68-2-30): = 5*108 Ohm

Box quantity 100 pieces

Additional Information

SKU FAV-CONSC81
Barcode N/A
Manufacturer Neutrik
Manfacturer Code NSC81
Series N/A
