Neutrik Nc5frx-b Xlr 5 Pin Female R/angle Cable Bk/shell Connector

Be the first to review this product

Availability: In stock

Only 9 left

Excl. Vat: £13.05 Incl. Vat: £15.66
OR

Neutrik XLR 5 Pin Female Right Angle Cable Black Body Gold Pins NC5FRX-B CONC5FRXB By Neutrik

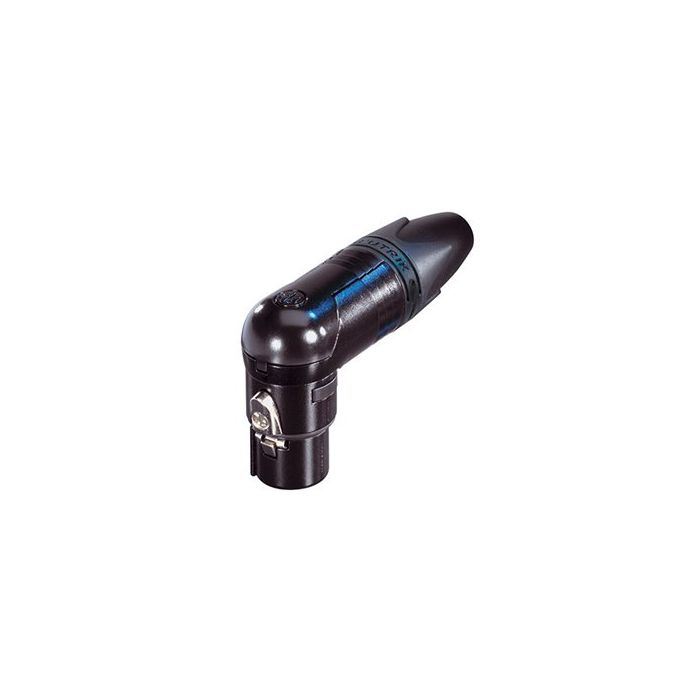

Neutrik Nc5frx-b Xlr 5 Pin Female R/angle Cable Bk/shell Connector

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
Neutrik Inline XLR Connectors

Details

Neutrik XLR 5 Pin Female Right Angle Cable Black Body Gold Pins NC5FRX-B CONC5FRXB

NC5FRX-B
5 pole right angle female cable connector, black metal housing, gold contacts
The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Extra slim right-angle connector with 5 selectable cable outlet positions
Female contact incorporates a solder barrier to prevent solder running into the contact mating area
Additional ground spring contacts for better shell ground continuity
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Boot with polyurethane gland gives high protection to cable bending stresses
Rated current per contact: 16 A
Rated voltage: 50 V
Cable O.D: 3.5 - 8.0 mm
Wire size: max. 2.5 mm
Wiring: Solder contacts
Shell plating: Black chromium
Priced per connector: available in any quantity
Packing information: Box quantity = 50
Coloured rings and boots available for coding or identification
Manufacturer: Neutrik http://www.neutrik.co.uk/

Additional Information

SKU FAV-CONC5FRXB
Barcode N/A
Manufacturer Neutrik
Manfacturer Code Nc5frx-b
Series No
