Neutrik Nc3md-lx-ha-bag 3 Pole Male Xlr Crimp Chassis Connector

Be the first to review this product

Availability: In stock

Excl. Vat: £3.75 Incl. Vat: £4.50
OR

Neutrik XLR 3 PIn Male Chassis DLX Crimp Version Black Body NC3MD-LX-HA-BAG CONC3MDLXHABAG By Neutrik

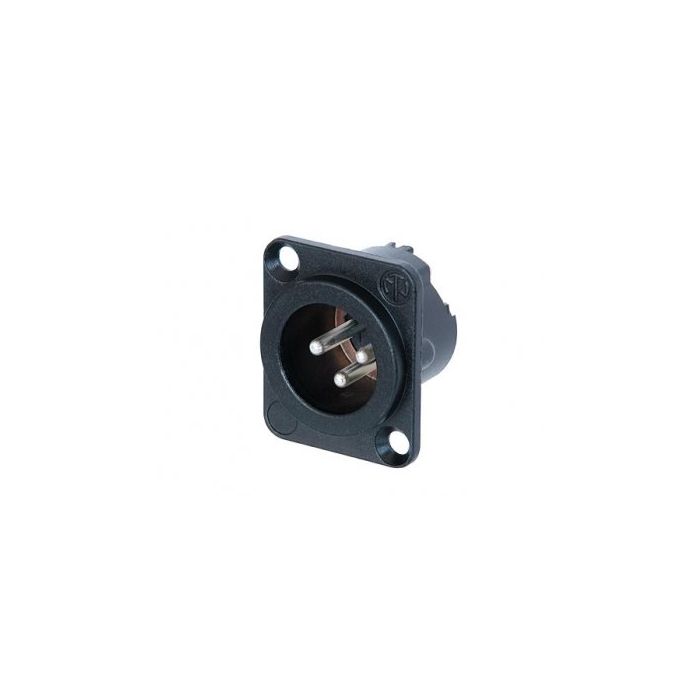

Neutrik Nc3md-lx-ha-bag 3 Pole Male Xlr Crimp Chassis Connector

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
Neutrik XLR Chassis

Details

Neutrik XLR 3 PIn Male Chassis DLX Crimp Version Black Body NC3MD-LX-HA-BAG CONC3MDLXHABAG

3 pole male receptacle, crimp termination (Standard B-Crimp), black metal housing, silver contacts
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.

All metal housing offers best overall RF protection and electromagnetic shielding
Crimp termination with standard B-crimp tool (B-crimp acc. IEC 60352-2)
Gastight and Solderless connection (RoHS compliant)
New duplex ground contact for excellent contact integrity between chassis and cable connector
Male connector's retention bar replaces plastic design with all metal version improving pull-out force
Optional connection to easily join pin1 to chassis ground
D-style housing provides installation compatibility with industry standard D mounting dimensions

Additional Information

SKU FAV-CONC3MDLXHABAG
Barcode N/A
Manufacturer Neutrik
Manfacturer Code Nc3md-lx-ha-bag
Series No
