Neutrik Nc3mbv-sw Xlr 3 Pin Male Chassis Connetor

Be the first to review this product

Availability: In stock

Only 100 left

Excl. Vat: £6.19 Incl. Vat: £7.43
OR

Neutrik XLR 3 Pin Male Chassis Switching Contacts Vertical PCB NC3MBV-SW CONC3MBVSW By Neutrik

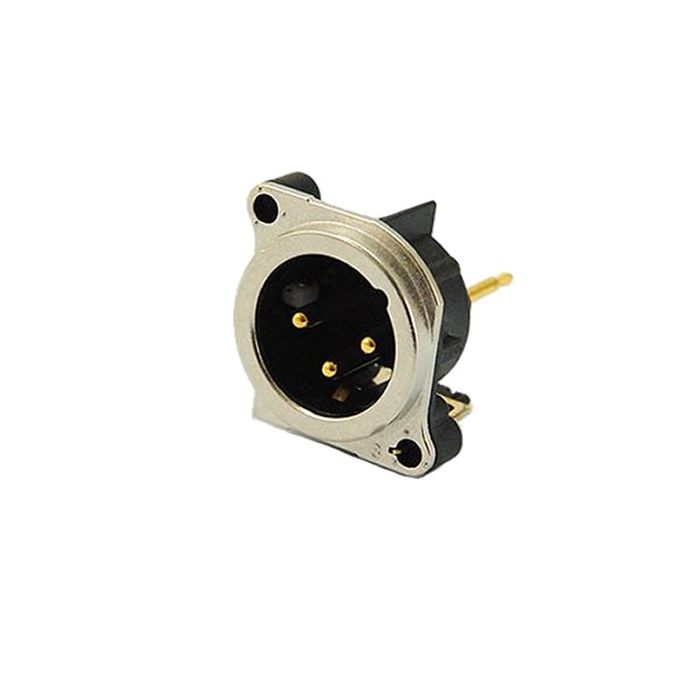

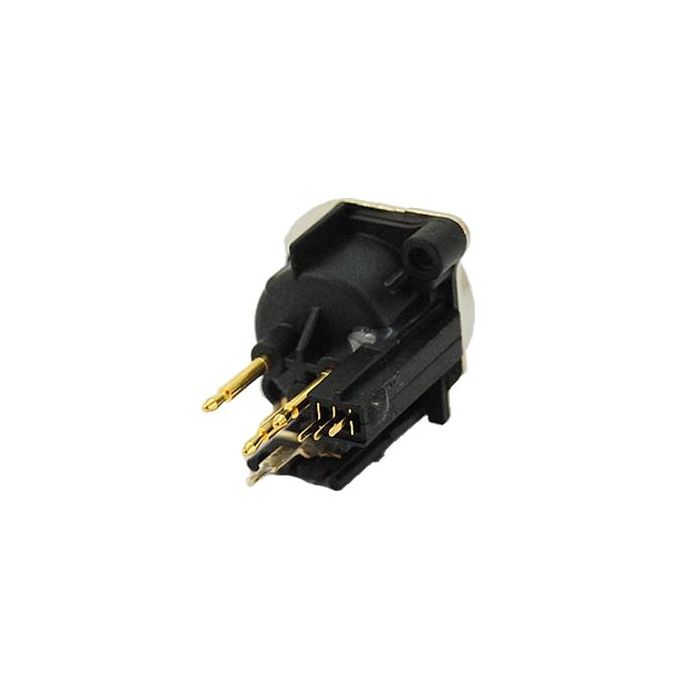

Neutrik Nc3mbv-sw Xlr 3 Pin Male Chassis Connetor

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
Neutrik XLR Chassis

Details

Neutrik XLR 3 Pin Male Chassis Switching Contacts Vertical PCB NC3MBV-SW CONC3MBVSW

NC3MBV-SW
3 pole male XLR receptacle, switching contacts, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount
The switching contacts are activated by the mating connector offering the possibility to indicate, monitor and control the mated connection. The switch provides a normal open and normal closed contact.
The BA Series is the more economical version of the B Series with circumferential metal flange featuring EMC and RF shielding and mechanical robustness.
Features & Benefits
More economical version of B Series, same size and featuring highest packing density
Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
Fitted with changeover switch
Normally open, normally closed (NO - NC) contact
Switch activated by inserting the cable connector

Additional Information

SKU FAV-CONC3MBVSW
Barcode No
Manufacturer Neutrik
Manfacturer Code Nc3mbv-sw
Series No
