Neutrik Nc3mbh-13 Pole Male Xlr Chassis B Series Nc3mbh-1

Be the first to review this product

Availability: In stock

Excl. Vat: £2.19 Incl. Vat: £2.63
OR

Neutrik XLR 3 Pin Male Chassis B Series NC3MBH-1 NC3MBH-1 CONC3MBH1 By Neutrik

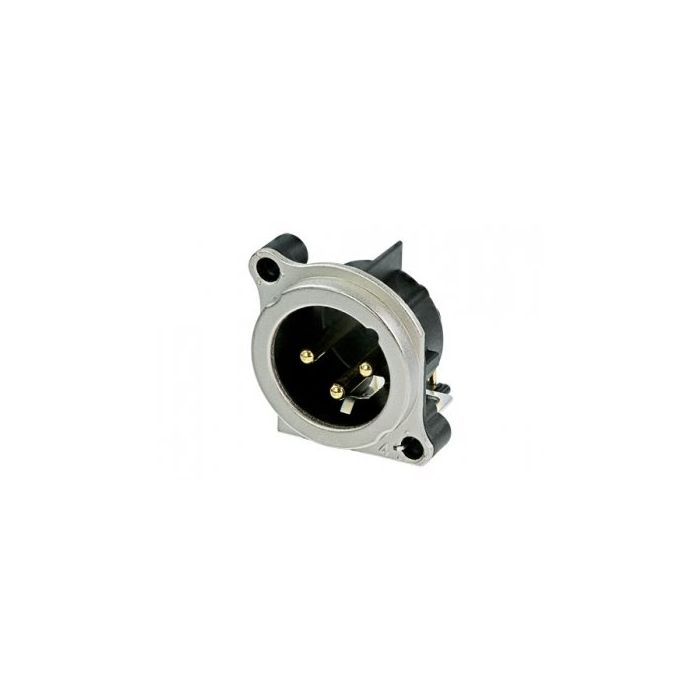

Neutrik Nc3mbh-13 Pole Male Xlr Chassis B Series Nc3mbh-1

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
Neutrik XLR Chassis

Details

Neutrik XLR 3 Pin Male Chassis B Series NC3MBH-1 NC3MBH-1 CONC3MBH1

3 pole male XLR receptacle, grounding: mating connector shell to pin1 and front panel, steel retention lug, horizontal PCB mount

Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice. UL recognized component.

Capacitance between contacts: 4 pF
Contact resistance: 5 mO (inner)
Dielectric strength: 1,5 kVdc
Insulation resistance: 10 GO (initial)
Rated current per contact: 6 A
Rated voltage: 50 V
Insertion force: 20 N
Withdrawal force: 20 N
Lifetime: > 1000 mating cycles
Wiring: Horizontal PCB mount
Mounting direction: rear
Chassis shape: B
Mounting: B-Screw
Ring: Zinc diecast (ZnAl4Cu1)
Flange: Metal
Environmental: Flammability
Solderability: Complies with IEC 68-2-20
Temperature range: -30 ?C to +80 ?C

You may also be interested in the following product(s)

Neutrik Xlr 3 Pin Male Chassis B Series Horz Nc3mbh Nc3mbh Connector

Neutrik Xlr 3 Pin Male Chassis B Series Horz Nc3mbh Nc3mbh Connector

Excl. Vat: £2.33 Incl. Vat: £2.80
Neutrik Xlr 3 Pin Male Chassis B Series R/hand Pcb Nc3mbhr Nc3mbhl

Neutrik Xlr 3 Pin Male Chassis B Series R/hand Pcb Nc3mbhr Nc3mbhl

Excl. Vat: £2.44 Incl. Vat: £2.93


Additional Information

SKU FAV-CONC3MBH1
Barcode N/A
Manufacturer Neutrik
Manfacturer Code Nc3mbh-13
Series No
