Medium Overlatch Protective Ridges 3000

Penn Elcom Medium Overlatch Protective Ridges 3000 3000

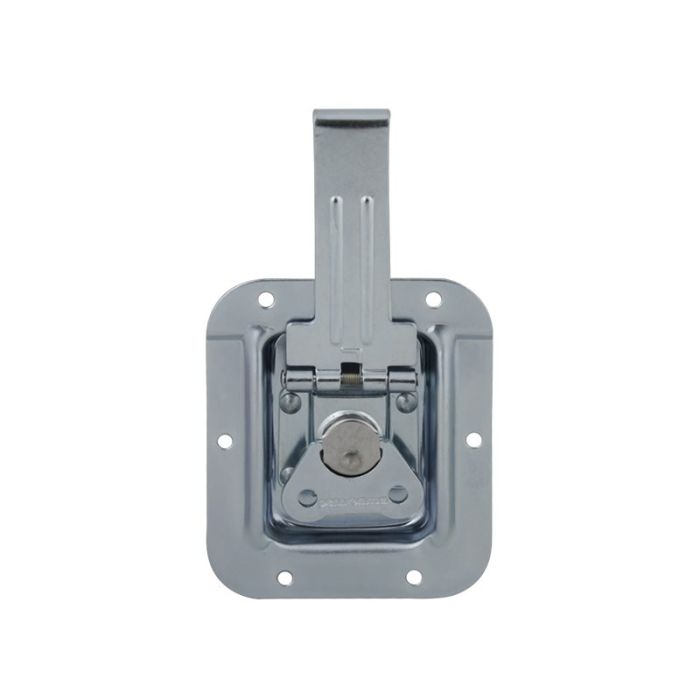

Medium Valance Spanning Overlatch in Shallow Offset Dish with Protective Ridges

Securely close your case with a Penn Elcom valance spanning latch mounted in a one-part dish. This latch has a blade action which allows it to be mounted below the edge extrusion, eliminating the need to cut through the extrusion. When unlocked, the blade springs back onto the dish. The catch plate can be mounted directly onto the lids edge extrusion or onto a Lidmaker extrusion. The Zinc plating offers an excellent protection against corrosion. The protective ridges shield the latch from being accidentally hit or damaged. The top of the dish is offset so it can sit on top of the edge extrusion. With a depth of only 10mm / 3/8, the shallow dish will not protrude inside the case, even when used with panels as thin as 10mm / 3/8.

Product Features?:

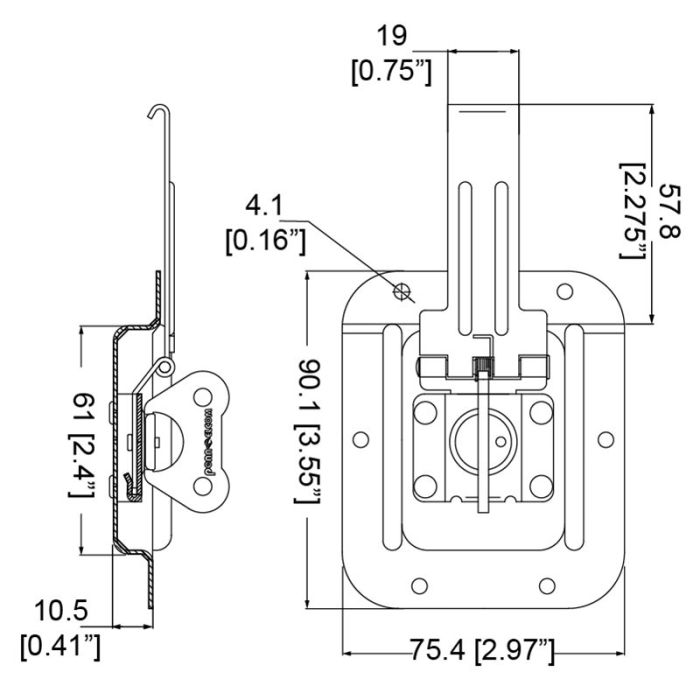

- Hook Length from Dish Offset: 57.8mm / 2 1/4
- Dish Width: 75.4mm / 3
- Dish Height: 90.1mm / 3 9/16
- Dish Depth: 9.5mm / 3/8
- Offset: 15mm / 9/16 on top edge of the dish
- Lockable: No
- Finish: Zinc
- Material: 1.2mm / 18 gauge Steel
- Weight: 0.13kg / 0.28lb

Installation Information?:
- Panel Cut-Out Size: 62.3mm x 46mm / 2 7/16 x 1 13/16
- Mounting Holes: 6 x 5.2mm / 3/16
- Rivets Required for Installation: 6
- Use Catch Plate 2007
