Led Lfd400s-g1-827-06 Diffuse Side 24v 4052899953611

Be the first to review this product

Availability: In stock

Only 2 left

Excl. Vat: £496.00 Incl. Vat: £595.20
OR

Led Lfd400s-g1-827-06 Diffuse Side 24v 4052899953611 LEDLFD400S827 By First-AV.co.uk

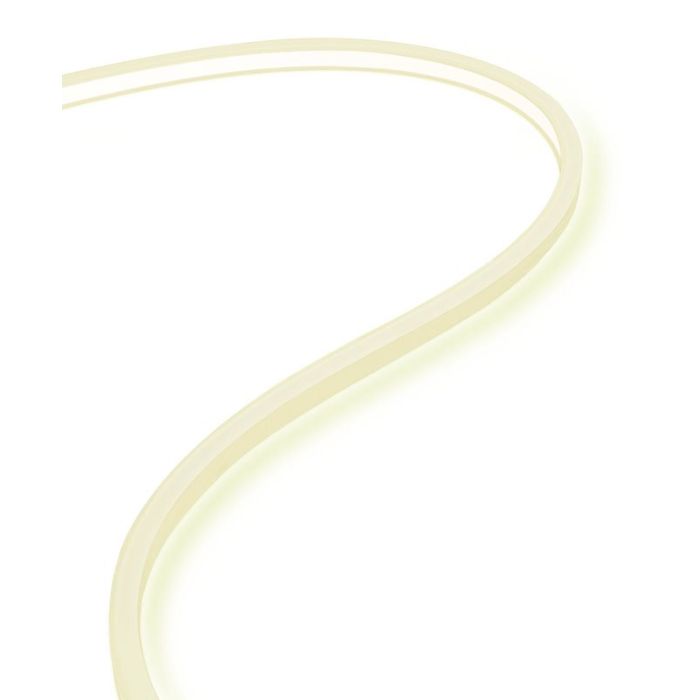

Led Lfd400s-g1-827-06 Diffuse Side 24v 4052899953611

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
LED Flex and Modules

Details

LINEARlight FLEX DIFFUSE 400 Side LED modules for professional and industrial applications
Osram LFD400S -G1-827-06
Supplied with 1 pre-fitted power connector (FX-DCS-G1-CM2PF-IP67-0500)

Product benefits:

IP67 protection with high performance silicone
Outdoor use possible: UV and salt mist resistant (UV acc. to ISO 4892-2 - Method A, salt mist acc. to IEC 60068-2-52 severity 1)

Product features:

Diffused light lines without visible spots
Flexible and cuttable module to support design freedom
Long operational length per single power feed possible (up to 6m)
Ideal for luminaire designs
Extra strong self-adhesive backside for easy mounting
24V technology for easy dimensioning
Recommended in system use with OPTOTRONIC
Increased reliability due to single piece reel-to-reel technology
Dimmable with PWM technology

Areas of application:

Individual and customized luminaires
Organic shaped luminaires
Architectural Integration e.g. coves, walls
Object integration e.g. handrails
Signage and illuminated advertising

Technical data:

EAN: 4052899953611
Nominal voltage: 24V
Rated wattage: 43.2W
Reverse Voltage: 25V
Input voltage range: 23-25V
Nominal wattage per meter: 7.2W
Luminous efficacy: 57 lm/W
Colour temperature: 2700K
Colour rendering index Ra: >80
Colour appearance: Warm White
Luminous flux: 2460lm
Luminous flux per meter: 410lm
Beam angle: 120 Deg
Number of LEDs per module: 840
Number of LEDs per meter: 140
Length: 6000 mm Width: 10 mm
Height: 14.1 mm
Product weight 1040 g
Temperature range in operation: -20 to +65 C
Lifespan (L70/B50): 50000h
Dimmable: Yes
Dimming method: PWM
Lowest bending radius: 100 mm
With end piece: No
With connection set: Yes
Self-adhesive: Yes
Standards: CE/ENEC/10 VDE/EAC/UL
Recognized component according UL 8750

Datasheets

Family Datasheet Download
Product Datasheet Download
Side Accessories Family Datasheet Download
User Installation Guide - Top and Side Download
EU Declaration of Conformity Download
Manufacturer's Declaration of Conformity with European Standards Download
VDE-ENEC Certificate Download

Additional Information

SKU FAV-LEDLFD400S827
Barcode N/A
Manufacturer First-AV.co.uk
Manfacturer Code LEDLFD400S827
Series N/A
