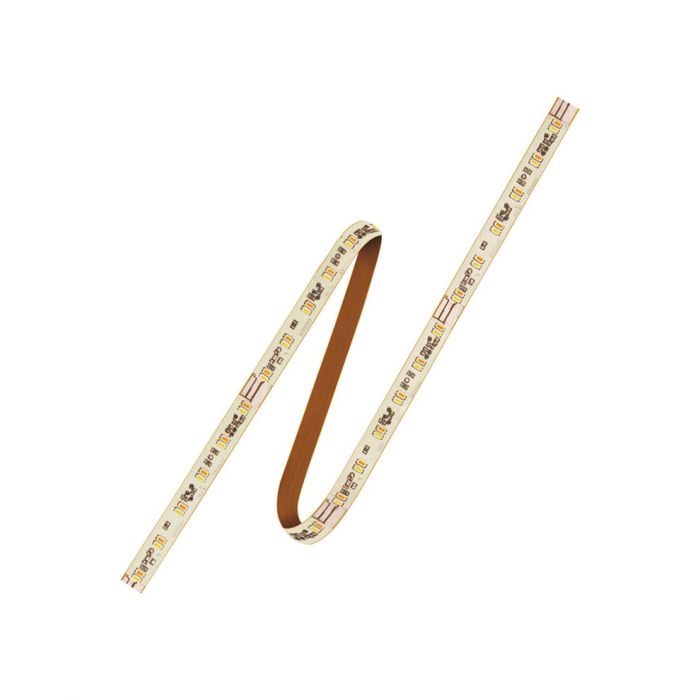

Lf4000tw-g3-82765-02 Linearlight Flex Power Tunable White 87.4w 24v 2.1m/reel 4052899953260

Osram LF4000TW-G3-82765-02 LINEARlight Flex Power Tunable White 87.4W 24V 2.1M/reel 4052899953260 LEDLFTWP4000

LF4000TW-G3-82765-03 Osram Tunable White

Priced per reel!

Use 3pin power connector to connect to LED power supply.
FX-SC08-G2-CT3PF-0500HF - for connecting from the right side
FX-SC08-G2-CT3PF-0500HF - for connecting from the left side
Fx-sc08-g2-ct4pj - Board to board jumper for joining off cuts

Enjoy full flexibility in lighting design. Integrate light smoothly into architecture and lifestyle objects. Even select the color when you switch on the light. Pair the new LINEARlight FLEX Tunable White range of
modules with the EASY color control system for hassle free installation and simple handling.

Key features and benefits

High-intensity LED light source
Linear separable LED strip on flexible
Printed circuit board with self-adhesive back
Dimmable

Areas of applications

Architectural lighting
Path illumination
Signage application

Note:

The lifetime of LED FLEX is reduced if the LEDs get too hot.

Heat management is best achieved with aluminium profiles.

In addition to acting as a heat sink, profiles provide protection and can often enhance the appearance with use of a diffuser.

All high powered LED flex require heat management and this product should be used with a suitable profile.

Technical Data:

EAN: 4052899953260

Colour Temperature: 2700-6500 K
Colour appearance: Tunable White
Light colour (designation): Dynamic White
Nominal voltage (dc): 24 V
Reverse voltage (dc): 25 V
Power consumption: 87.4 W
Power consumption per M: 41.6 W
Luminous flux: 7953 lm
Luminous flux per M: 3787 lm
Luminous efficacy: 91 lm/W
Beam angle: 120 Deg
Input current (DC): 3.6 A
Module length: 2100 mm
Width: 8 mm
Height: 1.45 mm
Minimum cutting points: 75 mm
Distance between two consecutive LED chips: 12.5 mm
Dimming pattern: PWM
Binning: Fine white
Lifetime (L70/B50, Tc max): 60000 h
Number of LED chips per M: 160
Number of LED chips per module: 336
Temperature range in operation: -20 +85 C
Temperature range at storage: -40 +85 C
Manufacturers website: www.osram.com/osram_com/products/led-technology/light-engines-and-modules/linear-led-modules-for-flexible-and-individualized-lighting-solutions/linearlight-flex/linearlight-flex-tunable-white
