Led Vf2000-g3-840-05 High Power Ip20 4k 24v 4052899528994

Osram Led Vf2000-g3-840-05 High Power Ip20 4k 24v 4052899528994 LEDVF2000G3840

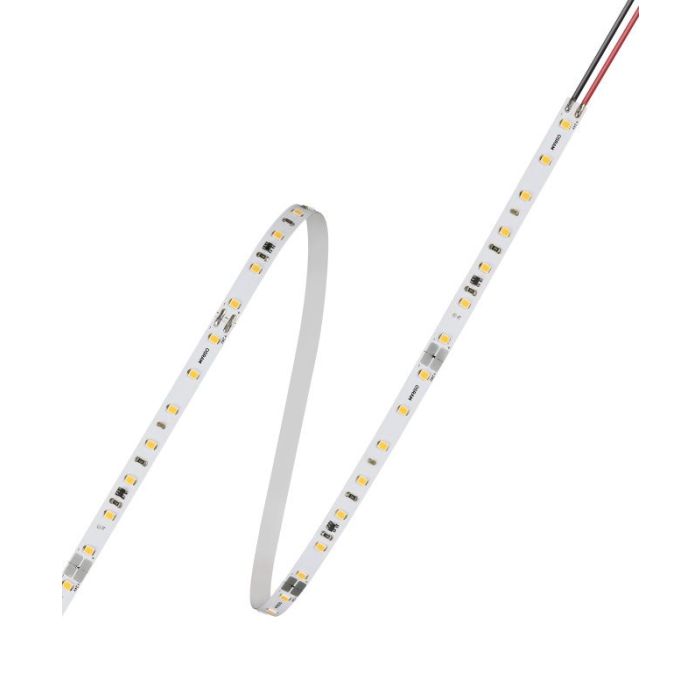

VALUE Flex 2000
VF2000 -G3-840-05

Product benefits

Energy saving low-power flexible LED strip
Pre-wired LED strip, simple and quick plug-and-play installation
Good light output due to homogeneous LED distance and high color consistency
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
Easy installation with optional track system
Easy to cut and reconnect to the reliable SLIMCONNECT system G2

Product features

Available with light colour Warm White, Cool White
Luminous flux up to 2000 lm/m
High colour consistency 4 SDCM
Self-cooling
Beam angle per module 120 deg
Dimmable with suitable OPTOTRONIC control gears
Type of protection IP20

Areas of application

Hospitality
Signage
Architecture lighting
Cove lighting
General illumination
Wall integration
Display cabinet lighting

Equipment / Accessories

SLIMCONNECTsystem FLEX IP54 connector
Optional Track system
ELEMENT LED drivers
OPTOTRONIC LED drivers

Note

The lifetime of LED FLEX is reduced if the LEDs get too hot.
Heat management is best achieved with aluminium profiles.

In addition to acting as a heat sink, profiles provide protection and
can often enhance the appearance with use of a diffuser.
All high powered LED flex require heat management and this product
should be used with a suitable profile.

Technical Data

EAN: 4052899528994
Nominal wattage: 72 W
Nominal wattage per meter: 14.4 W
Reverse Voltage: 25 V
Nominal voltage: 24 V
Input voltage range: 23-25 V
Type of current: DC
Nominal current: 3 A
Colour temperature: 4000 K
Light colour (designation): Neutral White
Light colour LED: White
Luminous flux per meter: 2000 lm
Luminous flux: 10000 lm
Luminous efficacy: 139 lm/W
Colour rendering index Ra: >80
Beam angle: 120 Deg
Number of LEDs per meter: 70
Number of LEDs per module: 350
Length: 5000 mm
Width: 8 mm
Height: 1.5 mm
Product weight: 90 g
Length smallest unit: 100 mm
LED pitch: 14.28 mm
Performance temp. acc. to IEC 62717: 40 C
Temperature range in operation at Tc point: -25 +75 C
Ambient temperature range: -25 +55 C
Lifespan: 35000 h
Dimmable: Yes
Self-adhesive: Yes
Lowest bending radius: 50 mm
With connection set: Yes
With end piece: Yes
Standards: CE/Acc. to IEC 62471/Acc. to IEC 60598-1/Acc. to EN 60529/Acc. to EN 62031/Acc. to EN 55015/Acc. to EN 61547
Type of protection: IP20
Energy efficiency class: A+
Energy consumption: 72 kWh/1000h
Temperature range at storage: -30 +85 C
