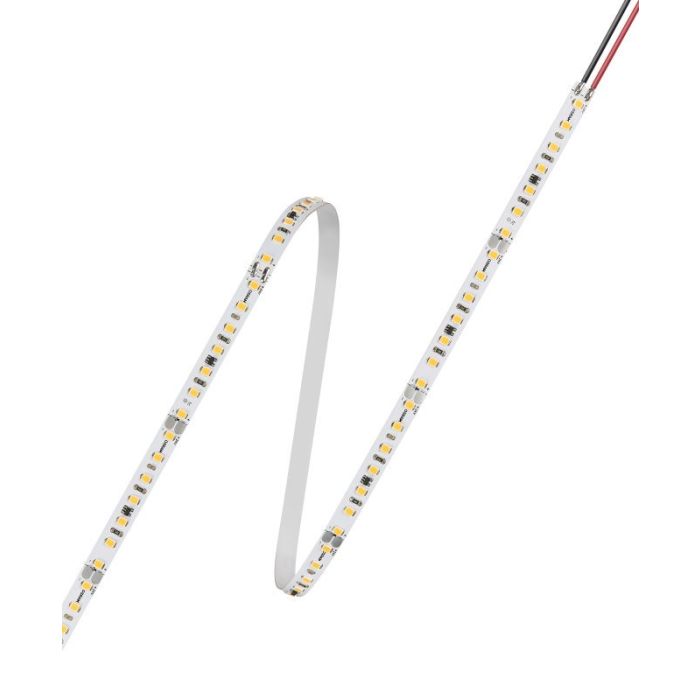

Led Vf1200s-g3-840-06 Shortpitch Ip20 4k 24v 4052899528833

£147.78
In stock
Only 1 left
SKU
FAV-LEDVF1200SG3840

Led Vf1200s-g3-840-06 ShortPitch Ip20 4k 24v 4052899528833 LEDVF1200SG3840 By Osram

Osram Led Vf1200s-g3-840-06 ShortPitch Ip20 4k 24v 4052899528833 LEDVF1200SG3840

VALUE Flex 1200 ShortPitch
VF1200 -G3-840-06

For available accessories (strip to driver connectors, in-line joiners), please see bottom of description in Related Products section.

Product family features:

Available with light color Warm White, Cool White
Luminous flux up to 1200 lm/m
High color consistency 4 SDCM
Self-cooling
Beam angle per module 120 Deg
Dimmable with suitable OPTOTRONIC control gears
Type of protection IP20

Product family benefits:

Energy saving low-power flexible LED strip
Pre-wired LED strip, simple and quick plug-and-play installation
Good light output due to homogeneous LED distance and high color consistency
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
Easy installation with optional track system
Easy to cut and reconnect to the reliable SLIMCONNECT system

Areas of application:

Hospitality
Signage
Architecture lighting
Cove lighting
General illumination
Wall integration
Display cabinet lighting

Equipment / Accessories:

SLIMCONNECTsystem FLEX IP54 connector
Optional Track system
ELEMENT LED drivers
OPTOTRONIC LED drivers

Note:

The lifetime of LED FLEX is reduced if the LEDs get too hot.
Heat management is best achieved with aluminium profiles, see link
https://www.pennelcomonline.com/en/LED-Aluminium-Profiles/c-302.aspx

In addition to acting as a heat sink, profiles provide protection and
can often enhance the appearance with use of a diffuser.
All high powered LED flex require heat management and this product
should be used with a suitable profile.

Technical Data:


EAN: 4052899528833
Nominal wattage: 60 W
Nominal wattage per meter: 10 W
Reverse Voltage: 25 V
Nominal voltage: 24 V
Input voltage range: 23-25 V
Type of current: DC
Nominal current: 2.5 A
Colour temperature: 4000 K
Light colour (designation): Cool White
Light colour LED: White
Luminous flux per meter: 1200 lm
Luminous flux: 7200 lm
Luminous efficacy: 120 lm/W
Standard deviation of color matching: =<4 sdcm
Colour rendering index Ra: >80
Beam angle: 120 Deg
Number of LEDs per meter: 116
Number of LEDs per module: 696
Length: 6000 mm
Width: 8 mm
Height: 1.5 mm
Product weight: 117 g
Cable length: 500.0 mm
Cable cross-section, input side: 20AWG (0.519 sqmm)
Length - smallest unit: 60 mm
LED pitch: 8.57 mm
Performance temp. acc. to IEC 62717: 40 C
Temperature range in operation at Tc point: -25 +80 C
Ambient temperature range: -25 +55 C
Temperature range at storage: -30 +85 C
Lifespan: 35000 h
Number of switching cycles: 15000
Lumen main.fact.at end of nom. life time: 0.70
Dimmable: Yes
Self-adhesive: Yes
Lowest bending radius: 50 mm
With connection set: Yes
With end piece: Yes
Standards: CE/Acc. to IEC 62471/Acc. to IEC 60598-1/Acc. to EN 60529/Acc. to EN 62031/Acc. to EN 55015/Acc. to EN 61547
Type of protection: IP20
Energy efficiency class: A+
Energy consumption: 66 kWh/1000h
Commodity code: 940540399000
More Information
Brandosram
Barcode4052899528833
Manfacturer CodeLEDVF1200SG3840
