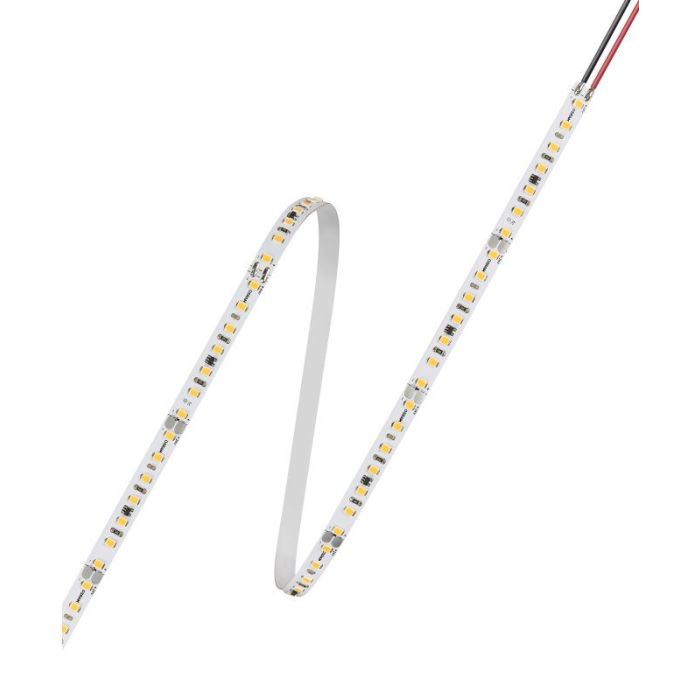

Led Vf1200s-g3-827-06 Shortpitch Ip20 27k 24v 4052899528796

Osram Led Vf1200s-g3-827-06 ShortPitch Ip20 27k 24v 4052899528796 LEDVF1200SG3827

VALUE Flex 1200 ShortPitch
VF1200 -G3-827-06

Product benefits

Energy saving low-power flexible LED strip
Pre-wired LED strip, simple and quick plug-and-play installation
Good light output due to homogeneous LED distance and high color consistency
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
Easy installation with optional track system
Easy to cut and reconnect to the reliable SLIMCONNECT system G2

Product features

Available with light colour Warm White, Cool White
Luminous flux up to 1200 lm/m
High colour consistency 4 SDCM
Self-cooling
Beam angle per module 120 deg
Dimmable with suitable OPTOTRONIC control gears
Type of protection IP20

Areas of application

Hospitality
Signage
Architecture lighting
Cove lighting
General illumination
Wall integration
Display cabinet lighting

Equipment / Accessories

SLIMCONNECTsystem FLEX IP54 connector
Optional Track system
ELEMENT LED drivers
OPTOTRONIC LED drivers

EAN: 4052899528796
Nominal wattage: 60 W
Nominal wattage per meter: 10 W
Reverse Voltage: 25 V
Nominal voltage: 24 V
Input voltage range: 23-25 V
Type of current: DC
Nominal current: 2.5 A
Colour temperature: 2700 K
Light colour (designation): Warm White
Light colour LED: White
Luminous flux per meter: 1100 lm
Luminous flux: 6600 lm
Luminous efficacy: 110 lm/W
tandard deviation of color matching: =<4 sdcm
Colour rendering index Ra: >80
Beam angle: 120 Deg
Number of LEDs per meter: 116
Number of LEDs per module: 696
Length: 6000 mm
Width: 8 mm
Height: 1.5 mm
Product weight: 117 g
Cable length: 500.0 mm
Length smallest unit: 60 mm
LED pitch: 8.57 mm
Performance temp. acc. to IEC 62717: 40 C
Temperature range in operation at Tc point: -25 +80 C
Ambient temperature range: -25 +55 C
Lifespan: 35000 h
Number of switching cycles: 15000
Dimmable: Yes
Self-adhesive: Yes
Lowest bending radius: 50 mm
With connection set: Yes
With end piece: Yess
Standards: CE/Acc. to IEC 62471/Acc. to IEC 60598-1/Acc. to EN 60529/Acc. to EN 62031/Acc. to EN 55015/Acc. to EN 61547
Type of protection: IP20
Energy efficiency class: A+
Energy consumption: 11 kWh/1000h
Temperature range at storage: -30 +85 C
Commodity code: 940540399000
