Led Rgbw Dmx & Rf 1-4 Zone Controller Wp-4rgbwn

Teucer Led RGBW DMX & RF 1-4 Zone Controller WP-4RGBWN LEDWP4RGBWN

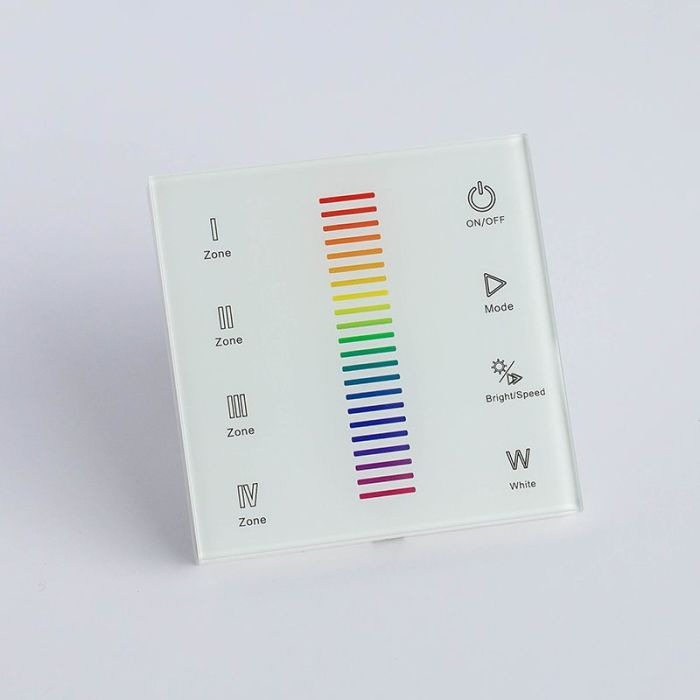

WP-4RGBWN 1-4 zones RF Wall Controller

The WP-4RGBW wall panel enables control of 1 to 4 zones of RGBW LED strip. Featuring a simple to use back lit touch control slider for easy colour adjustment.

For wiring instructions for use with DMX or RF please see datasheets.

Use with LEDDIMDMX1CH for DMX control of RGB and RGBW strips
Use with LEDR4C for RF control of RGB and RGBW strips

Product features

Enables control via DMX (DMX decoder required for DMX) or wirelessly via RF
Supports single zone independent control or multiple zone synchronous control.
Ultra-sensitive backlit high strength glass touch panel.
Smooth and accurate colour adjustment via a touch colour slider.
Independent brightness adjustment of each RGBW channel to achievea vast pallet of colours.
Built in 30 optional change modes with adjustable speed and brightness.

Manufacturers code: WP-4RGBWN
Type: RF and DMX wall panel controller
Input voltage: 85-265 V
Input frequency: 50/60 Hz
Operation frequency: 2.4 GHz
Length: 86 mm
Width: 86 mm
Height: 36.5 mm
Warranty: 3 Yrs
IP rating: 20
Number of controllable zones: 1-4
Max RF range: 30 m
Recommended RF range: 10 m
