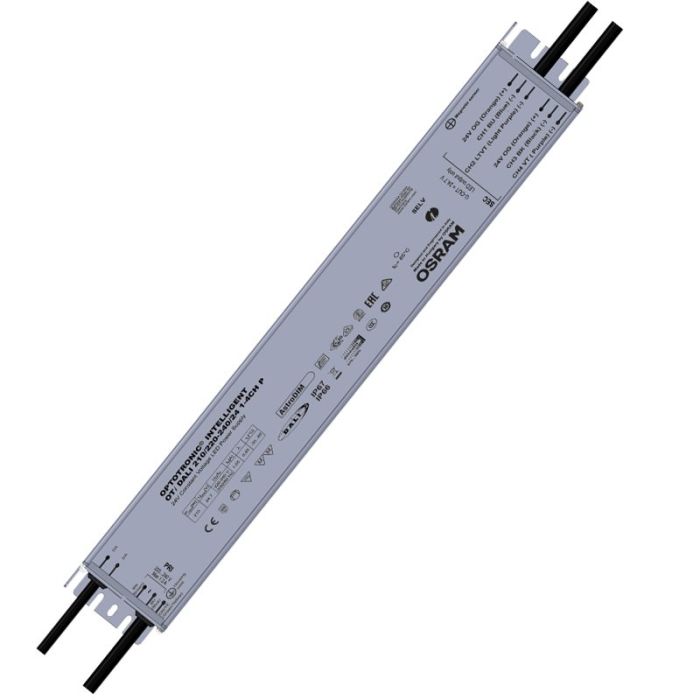

Osram Led Oti Dali 210/220-240/24 1-4 Channel Dim, 4062172032087

Osram Led Oti Dali 210/220-240/24 1-4 Channel Dim 4062172032087 LEDOTIDALI210

CV Power supplies with DALI
OTi DALI 210/220-240/24 1-4 CH

210W power can be ARBITRARILY distributed to 1 channel or across the 4 channels!

The OSRAM constant voltage power supplies with DALI, enable you to maximize any designs potential and enjoy flicker-free light due to a high PWM frequency, dimmable to between 0.1 and 100 % with TouchDIM. Use from 1 to 4 channels and benefit from DALI message detection of LED module failure.

The slender form of these drivers makes them ideal for use when you need to install LED lighting in tight spaces or linear luminaires, for example in coves, corridors and handrails, or for wall washing. They are suitable for 24 V LED modules and for use with luminaires of protection classes I and II.

Product family benefits:

Intelligent power matching thanks to Smart power supply
Slim form factor for mounting on the cove or in linear luminaires
Minimized flicker thanks to high PWM frequency
Suitable for installation in emergency lighting systems according to EN 60598-2-22
Available as Tunable White version (DALI Device Type 8)
DALI message detection "LED Module failure"

Product benefits:

Long lasting and high reliability.
From 1 to 4 channels to arbitrarily distribute the power.
Suitable for installation under sunlight.
IP66/IP67 Salt mist resistant and DC functionality.
AstroDim functionality for automatic turn on/off.

Areas of Application:

Cove lighting, wall washer, corridor, handrail
Suitable for use in luminaires of protection class I and II

Technical Data:

EAN: 4062172032087
Nominal output power: 210 W*
Device power loss (Full load, 230 Vac, 50 Hz): 18.4 W
Mains frequency: 50/60 Hz
Power loss in stand-by mode: <0.5 W
Galvanic isolation primary/secondary: 3 kV
Surge capability (L/N - SD): 8 kV
Output PWM frequency: 1k Hz
Nominal line voltage: 220-240 V
Nominal output voltage: 24.7 V
Input voltage AC: 198-264 V
Input voltage DC: 176-276 V
Nominal current (Full load, 230 Vac, 50 Hz): 1.05 A
Total Harmonic Distortion (THD), (Full load, 230 Vac, 50 Hz,): <5 %
Power factor (Full load, 230 Vac, 50 Hz,): 93%
ECG Efficiency (Typical, Full load, 230 Vac, 50 Hz, see graphs): 93 %
Protection: class I
Suitable for fixtures with prot:. Class I
Inrush current (Full Load, 240 Vac, Cold Start): 3.7 A
Max. ECG no. on circuit breaker 10 A (B): 7
Max. ECG no. on circuit breaker 16 A (B): 11
Max. ECG no. on circuit breaker 25 A (B): 17
Max. ECG no. on circuit breaker 10 A (C): 7
Max. ECG no. on circuit breaker 16 A (C): 11
Output ripple Voltage (100 Hz): < 5 %
Galvanic isolation: SELV
Galvanic isolation (DALI to Primary/DALI to Secondary): Basic/Double
Dimmable; Yes
Number of channels: 4
Dimming interface: DALI 2.0
Dimming range 0.1 - 100 %
Dimming method: PWM
PWM frequency: 1 kHz
Mounting hole spacing, length: 320.0 mm
Product weight: 1415.00 g
Height: 37.0 mm
Width: 69.0 mm
Length: 330.0 mm
Ambient temperature range: -30 +60 C
Max. temperature at Tc test point: +85 C
Storage temperature range: -40 +85 C
Permitted rel. humidity during operation: 5-85 %
Suitable for fixtures with prot. class: I
Overheating protection: Automatic reversible
Overload protection: Automatic reversible
Short-circuit protection: Automatic reversible
Surge capability (L vs N / LN vs PE) 6 / 8
No-load proof: Yes
Output wire length: up to 50 m**
Type of protection: IP66/IP67
Mains switching cycles: > 10000
Expected ECG lifetime (Ta = 60C, Tc = 85C and 10% failure rate, always ON): 30000 h
Expected ECG lifetime (Ta = 60C, Tc = 85C and 10% failure rate, 14 h ON and 10 h stand-by per day): 50000 h
Warranty (10% cumulated failure): 5 years
Standards: Acc. to EN 61347-2-13/Acc. to EN 61547/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61000-3-3/Acc. to EN 61347-1/Acc. to EN 62493
Approval marks - approval: BIS / CCC / CE / EAC / ENEC 10 / RCM / VDE / VDE-EMC

*Power factor, harmonics and EMI guaranteed between 80-210 W
**See Technical Support file in download section for detailed information
