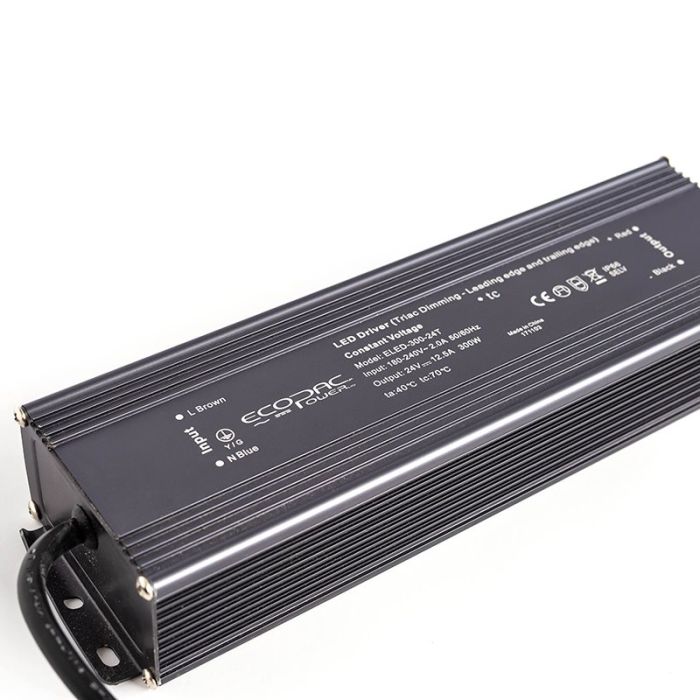

Led Mains (triac) Dimmable Driver 300w 24v Eled-300-24t

Be the first to review this product

Availability: In stock

Only 4 left

Excl. Vat: £126.48 Incl. Vat: £151.78
OR

Led Mains (Triac) Dimmable Driver 300w 24v ELED-300-24T LEDMD30024 By First-AV.co.uk

Led Mains (triac) Dimmable Driver 300w 24v Eled-300-24t

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
LED Power Supply and Control Gear

Details

P PAR 16 35 36deg 3.1 W/840 GU10 DIM
EcoPac LED 300 watts Dimmable constant voltage LED driver allows you to Dim your LED Strip by using your existing Leading edge dimmer or lighting system straight to your dimmable driver(s).

Product Features:

Output constant voltage
AC input 180 to 240 Vac
High efficiency up to 90%
Protections Short circuit/over loading/over current
Cooling by free air convection

Recommended dimmer: Leading Edge
Manufacturers Code: ELED-300-24T
Power factor (@ 230Vac): typ. >= 0.98
Input voltage (AC): 180 - 240 V
Input current typ. (AC): 2.5 A
Leakage current (@ 230Vac): < 0.7 mA
Operating frequency: 47-63 Hz
Output voltage: 24 V
Output voltage tolerance: +/- 5 V
Output wattage: 300 W
Output current: max. 12.5 A
Short circuit protection: Yes
Overload protection: Yes
Surge protection: 1 kV
CE & RoHS: Yes
Dimming range: 10-100 %
Inrush current (@ 230Vac): 50 A
Type of protection: IP66
Dimmable: Yes
Dimming Method: Leading Edge
Lenght: 276 mm
Width: 78 mm
Height: 47 mm
Partial load*: 30 W (10%)
Dimming output pattern: PWM
Full load efficiency: 90 %
*In order to achieve smooth and efficient dimming




Product Datasheet Download

Additional Information

SKU FAV-LEDMD30024
Barcode N/A
Manufacturer First-AV.co.uk
Manfacturer Code LEDMD30024
Series N/A
