Led Lfp800s-g3-880-10 Shortpitch 10m/reel 8k 24v Ip67 4052899953383

Osram Led Lfp800s-g3-880-10 Shortpitch 10m/reel 8k 24v Ip67 4052899953383 LEDLFP800S880

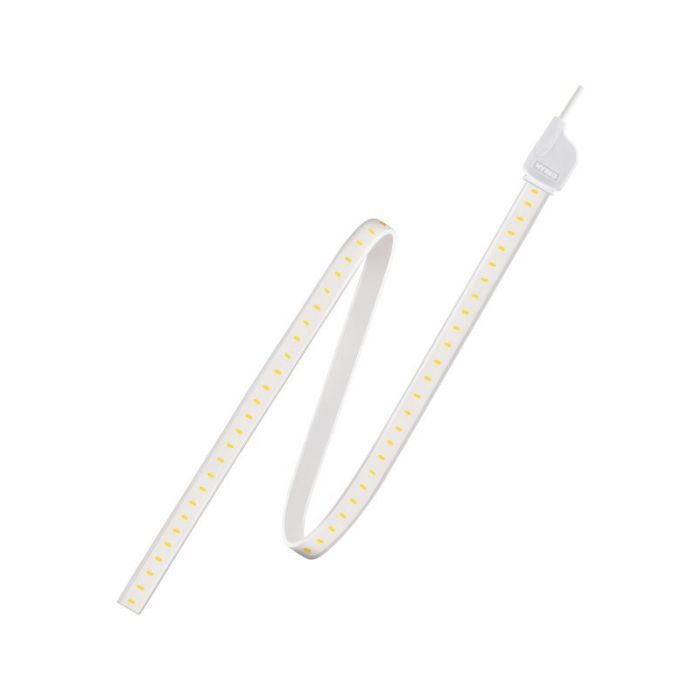

LINEARlight FLEX Protect ShortPitch
LFP800S -G3-880-10

Product benefits:

Very small LED spacing
Outdoor use possible UV and salt mist resistant (UV acc. to ISO 4892-2 - Method A, salt mist acc. to IEC 60068-2-52 severity 1)
Great design freedom thanks to flexibility and cuttability of module
High-performance silicone for extremely long life and flexibility
Simple connection thanks to premounted connectors
Extraordinary design and high quality materials
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back

Product features:

Flexible and cuttable LED strip
Luminous flux up to 810 lm/m
Type of protection IP67
Dimmable with PWM technology
Fine White (3.5 SDCM)

Areas of application:

Suitable for outdoor use

Equipment / Accessories:

Simplified connection with optional matching CONNECTsystem
Quick installation with optional SLIM TRACK System
Perfectly matched to OPTOTRONIC 24 V electronic control gears reduce

Note:

The lifetime of LED FLEX is reduced if the LEDs get too hot.
Heat management is best achieved with aluminium profiles, see link
https://www.pennelcomonline.com/en/LED-Aluminium-Profiles/c-302.aspx

In addition to acting as a heat sink, profiles provide protection and
can often enhance the appearance with use of a diffuser.
All high powered LED flex require heat management and this product
should be used with a suitable profile.

Technical Data:

EAN: 4052899953383
Nominal wattage: 83 W
Nominal wattage per meter: 8.3 W
Reverse Voltage: 25 V
Nominal voltage: 24 V
Input voltage range: 23-25 V
Type of current: DC
Nominal current: 3.5 A
Colour temperature: 8000 K
Light colour (designation): SkyWhite
Light colour LED: White
Luminous flux per meter: 810 lm
Luminous flux: 8100 lm
Luminous efficacy: 98 lm/W
Colour rendering index Ra: >80
Beam angle: 120 Deg
Number of LEDs per meter: 120
Number of LEDs per module: 1200
Length: 10000 mm
Width: 11 mm
Height: 3.7 mm
Product weight: 113 g
Length - smallest unit: 50 mm
LED pitch: 8.3 mm
Temperature range in operation: -20 +70 C
Lifespan: 60000 h
Dimmable: Yes
Self-adhesive: Yes
Lowest bending radius: 50 mm
With connection set: Yes
With end piece: No
Standards: CE; ENEC 10 VDE/UL
Type of protection: IP67
Energy efficiency class: A+
Energy consumption: 83 kWh/1000h
Temperature range at storage: -40 +85 C
