Led Lfd800t-g1-827-06 Diffuse Top 24v 4052899581906

Osram Led Lfd800t-g1-827-06 Diffuse Top 24v 4052899581906 LEDLFD800T827

LINEARlight FLEX DIFFUSE 800 Top LED modules for professional and industrial applications
Osram LFD800T -G1-827-06
Supplied with 1 pre-fitted power connector (FX-DCS-G1-CM2PF-IP67-0500)

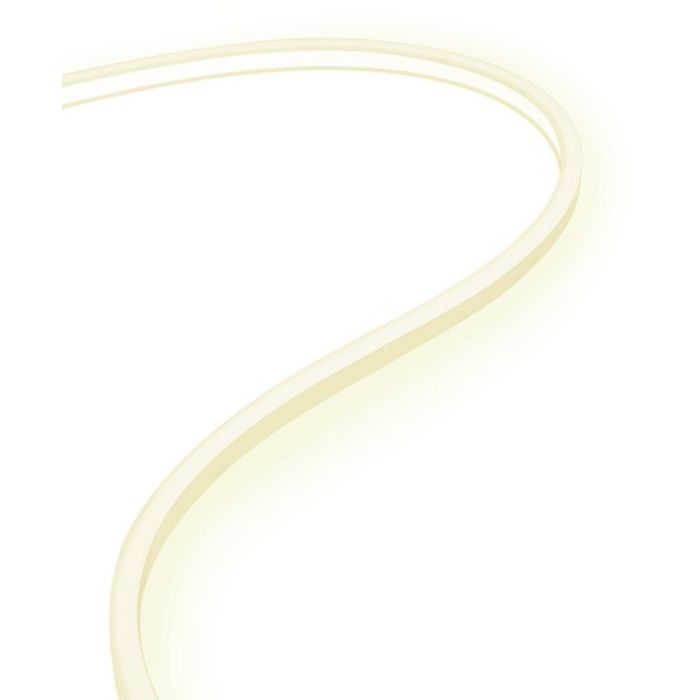

This flexible, cuttable strip of LEDs, with a self-adhesive strip on the reverse for easy mounting, has been created with freedom of design and light inspiration in mind.
It can increase the scope of your professional and industrial lighting installations quickly and easily, letting you design in light wherever you need it.
Easy to flex and cut to size, it is made from performance silicone, protected to IP67 and resistant to salt mist and UV, which means it is suitable for outdoor use.
LINEARlight FLEX DIFFUSE 400 gives you lines of diffuse light, without visible spots, and you can run up to 6 meters from a single power feed.
It is great for individual, customized and organically-shaped luminaires, architectural integration of walls and coves, and object integration (e.g. handrails), it can be dimmed with PWM technology, and it is a perfect match for OPTOTRONIC 24 V electronic control gears.

Product benefits:

IP67 protection with high performance silicone
Outdoor use possible UV and salt mist resistant (UV acc. to ISO 4892-2 - Method A, salt mist acc. to IEC 60068-2-52 severity 1)

Product features:

Diffused light lines without visible spots
Flexible and cuttable module to support design freedom
Long operational length per single power feed possible (up to 6m)
Ideal for luminaire designs
Extra strong self-adhesive backside for easy mounting
24V technology for easy dimensioning
Recommended in system use with OPTOTRONIC
Increased reliability due to single piece reel-to-reel technology
Dimmable with PWM technology

Areas of application:

Individual and customized luminaires
Organic shaped luminaires
Architectural Integration e.g. coves, walls
Object integration e.g. handrails
Signage and illuminated advertising
Light advertising
Offices
Shop lighting
Industry

Technical data:

EAN: 4052899581906
Nominal voltage: 24V
Rated wattage: 69.2W
Reverse Voltage: 25V
Input voltage range: 23-25V
Nominal wattage per meter: 11.5W
Luminous efficacy: 65.1 lm/W
Standard deviation of color matching: =<3 sdcm
Colour temperature: 2700K
Colour rendering index Ra: >80
Colour appearance: Warm White
Luminous flux per meter: 750 lm
LED pitch: 7.2 mm
Beam angle: 120 Deg
Number of LEDs per meter: 140
Length: 6000 mm
Length ? smallest unit: 50 mm
Width: 14.1 mm
Height: 10.8 mm
Product weight: 1040 g
Performance temp. acc. to IEC 62717: 50 C
Temperature range in operation at Tc point: -20 +65 C
Ambient temperature range: -20 +50 C
Nominal lamp life time: 50000 h
Dimmable: Yes
Lowest bending radius: 100 mm
Self-adhesive: Yes
With connection set: Yes
With end piece: No
Energy efficiency class: A
Energy consumption: 76 kWh/1000h
Standards: CE/UL Recognized component according UL 8750/VDE/ENEC/EAC
Type of protection: IP66/IP67
Temperature range at storage: -20 +85 C

Commodity code: 9405403990
