Led Lfd600s-g1-830-06 Diffuse Side 24v 4052899582040

Osram Led Lfd600s-g1-830-06 Diffuse Side 24v 4052899582040 LEDLFD600S830

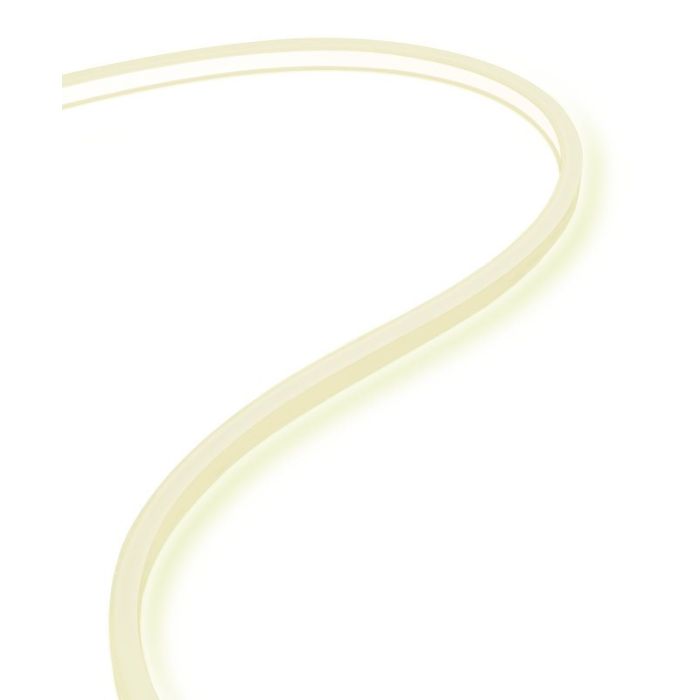

LINEARlight FLEX DIFFUSE 600 Side LED modules for professional and industrial applications
Osram LFD600S -G1-830-06
Supplied with 1 pre-fitted power connector (FX-DCS-G1-CM2PF-IP67-0500)

Follow your light inspiration, and easily build customized and organically-shaped luminaires with LINEARlight FLEX DIFFUSE 600 Side, a product designed specifically for professional and industrial lighting applications.
This flexible, cuttable strip of LEDs gives diffused light without visible spots, and you can run up to 6 meters from a single power feed.
Crafted from performance silicone, it resists dust, water, salt mist and UV, so whether you are building bespoke domestic luminaires or creating signage and illuminated advertising, you can use it ? indoors or outdoors.
It is ideal for architectural lighting and integration, for example in handrails, and for interior or exterior wall lighting.
Easy to mount using the extra-strong adhesive strip on the back, the LINEARlight FLEX DIFFUSE 600 Side uses 24V technology for easy dimensioning and can be dimmed with PWM technology.

Product benefits:

IP67 protection with high performance silicone
Outdoor use possible UV and salt mist resistant (UV acc. to ISO 4892-2 - Method A, salt mist acc. to IEC 60068-2-52 severity 1)

Product features:

Diffused light lines without visible spots
Flexible and cuttable module to support design freedom
Long operational length per single power feed possible (up to 6m)
Ideal for luminaire designs
Extra strong self-adhesive backside for easy mounting
24V technology for easy dimensioning
Recommended in system use with OPTOTRONIC
Increased reliability due to single piece reel-to-reel technology
Dimmable with PWM technology

Areas of application:

Individual and customized luminaires
Organic shaped luminaires
Architectural Integration e.g. coves, walls
Object integration e.g. handrails
Signage and illuminated advertising
Light advertising
Offices
Shop lighting
Industry

Technical data:

EAN: 4052899582040 (was 4052899499966)
Nominal voltage: 24V
Rated wattage: 69.2W
Reverse Voltage: 25V
Input voltage range: 23-25V
Nominal wattage per meter: 11.5W
Luminous efficacy: 52.1 lm/W
Standard deviation of color matching: =<3 sdcm
Colour temperature: 3000K
Colour rendering index Ra: >80
Colour appearance: Warm White
LED pitch: 7.2 mm
Beam angle: 120 Deg
Number of LEDs per meter: 140
Length: 6000 mm
Length ? smallest unit: 50 mm
Width: 10.8 mm
Height: 14.1 mm
Product weight: 1040 g
Performance temp. acc. to IEC 62717: 50 C
Temperature range in operation at Tc point: -20 +65 C
Ambient temperature range: -20 +50 C
Nominal lamp life time: 50000 h
Dimmable: Yes
Lowest bending radius: 100 mm
Self-adhesive: Yes
With connection set: Yes
With end piece: No
Energy efficiency class: A
Energy consumption: 76 kWh/1000h
Standards: CE/UL Recognized component according UL 8750/VDE/ENEC/EAC
Type of protection: IP66/IP67
Temperature range at storage: -20 +85 C
