Led Lf800s-g4-835-10 Shortpitch 10m/reel 35k 24v 4052899575813

Osram Led Lf800s-g4-835-10 Shortpitch 10m/reel 35k 24v 4052899575813 LEDLF800SG4835

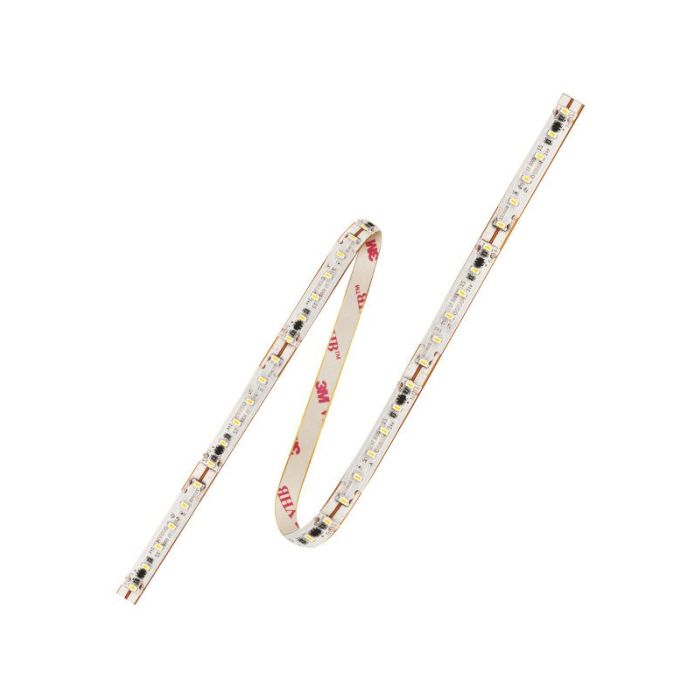

LINEARlight Flex ShortPitch 4th Generation
LF800S-G4-835-10

Expand your lighting options with this flexible, cuttable LED strip that gives you dimmable fine white light of luminous flux up to 850 lm/m and module efficacy up to 99 lm/W. Its flexible, cuttable nature and ease of use make this LED tape highly versatile, easy to design into original lighting designs and commercial lights.

In particular, it is ideal for edge coupling, small coving, object integration, path lighting, contour accent lighting, signage, advertising and lettering. A perfect match for OPTOTRONIC electronic control gears.

The LEDs in this module are closely spaced, and the tape is easy to mount and to connect: often you can use just the adhesive strip on the back to fix it in place (alternatively you may choose to use the SLIM TRACK System) and if you choose to use the optional SLIMCONNECT System G2, you can connect modules without tools.

For available accessories (strip to driver connectors, in-line joiners), please see bottom of description in Related Products section.

Product family benefits:

Color consistency up to 2 SDCM on entire light strip thanks to Single-bin technology
Color rendering options Ra 80 and 90
Service lifetime (L80/B10) up to 60000 h
LM79 and LM80 compliant
Embedded constant current regulators
No solder-joints on circuit board
Flexible and cuttable LED strips
Dimmable (with suitable PWM dimming methods)

Areas of application:

For high-end application with dedicated equipment and accessories

Equipment / Accessories:

Flexessories a complete set of aluminum channels with diffusers and lenses
Connectors quick-and-easy toolless installation with SLIMCONNECTsystem G2
Drivers and dimmers wide selection of OPTOTRONIC 24 V DALI, DMX and BLE
Check for more detailed information the specification sheets in the download section

Note:

The lifetime of LED FLEX is reduced if the LEDs get too hot.
Heat management is best achieved with aluminium profiles, see link
https://www.pennelcomonline.com/en/LED-Aluminium-Profiles/c-302.aspx

In addition to acting as a heat sink, profiles provide protection and
can often enhance the appearance with use of a diffuser.
All high powered LED flex require heat management and this product
should be used with a suitable profile.

Technical data:

EAN: 4052899575813
Nominal voltage: 24.0 V
Type of current: DC
Nominal wattage per meter: 7 W
Rated wattage: 70 W
Input voltage range: 23-25 V
Accidental reverse input voltage protection up to: 25 V
Light color LED: White
Color temperature: 3505 K
Color rendering index Ra: >= 80
Luminous flux per meter: 800 lm
Total useful luminous flux: 8000 lm
Luminous efficacy: 114 lm/W
Standard deviation of color matching: <= 3 sdcm
Light color (designation): White
LED pitch: 8.33 mm
Beam angle: 120 Deg
Rated beam angle (half peak value): 120.00 Deg
Starting time: < 0.5 s
Warm-up time (60 %): < 0.50 s
Number of LEDs per meter: 120
Number of LEDs per smallest unit: 6
Length: 10000 mm
Length - smallest unit: 50.0 mm
Width: 8.00 mm
Height: 1.40 mm
Product weight: 103.60 g
Performance temp. acc. to IEC 62717: 45 C
Temperature range in operation at Tc point: -30 +75 C
Ambient temperature range: -30 +50 C
Temperature range at storage: -40 +85 C
Rated lamp life time: 60000 h
Nominal lamp life time; 60000 h
Lumen main.fact.at end of nom.life time: 0.70
Number of switching cycles: 15000
Dimmable: Yes
Lowest bending radius: 20 mm
Self-adhesive: Yes
With connection set: Yes
With end piece: No
Energy efficiency class: A++
Energy consumption: 77 kWh/1000h
Standards: CE; ENEC 10 VDE/EAC/UL Recognized component according UL 8750
Type of protection: IP00
Commodity code: 940540399000
