Led Lf3000-g3-830-03 24v 3k 80cri 4052899952942

Osram Led Lf3000-g3-830-03 24v 3k 80cri 4052899952942 LEDLF3000830

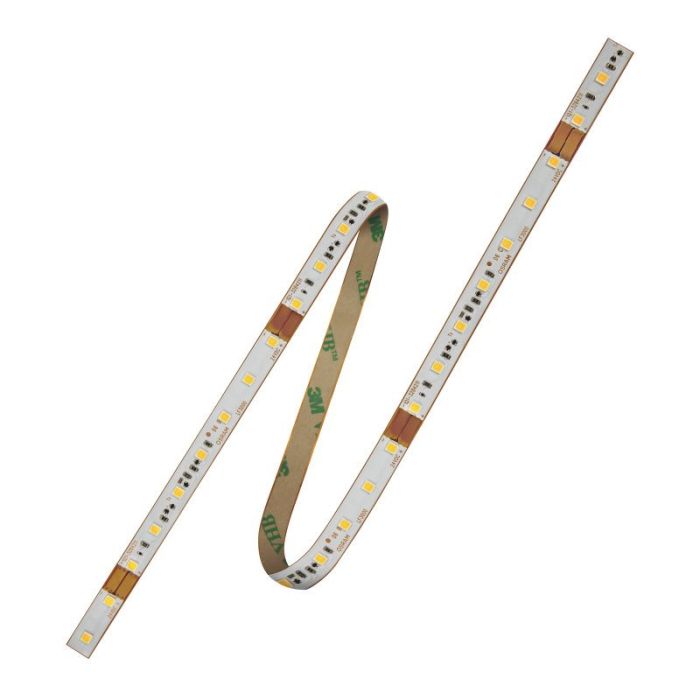

LINEARlight FLEX POWER 3000
LF3000 -G3-830-03

Product benefits

Large selection of light colors
Great design freedom thanks to flexibility and cuttability of module
Simple mounting and connection
Toolless connection with the optional CONNECTsystem
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
High luminous flux
Extraordinary design and high quality materials
Type of protection IP00

Product features

Flexible and cuttable LED strip
Luminous flux up to 3000 lm/m
Module efficacy up to 138 lm/W
Dimmable with PWM technology
Fine White (3 SDCM)

Areas of application

Architecture lighting
Cove lighting
Ceiling integration

Equipment / Accessories

Simplified connection with optional matching CONNECTsystem
Quick installation with optional SLIM TRACK System
Perfectly matched to OPTOTRONIC 24 V electronic control gears reduce

Note

The lifetime of LED FLEX is reduced if the LEDs get too hot.
Heat management is best achieved with aluminium profiles, see link
https://www.pennelcomonline.com/en/LED-Aluminium-Profiles/c-302.aspx

In addition to acting as a heat sink, profiles provide protection and
can often enhance the appearance with use of a diffuser.
All high powered LED flex require heat management and this product
should be used with a suitable profile.

Technical Data

EAN: 4062172143097 (was 4052899952942)
Nominal wattage: 71.1 W
Nominal wattage per meter: 23.7 W
Reverse Voltage: 25 V
Nominal voltage: 24 V
Input voltage range: 23-25 V
Type of current: DC
Nominal current: 3 A
Colour temperature: 3000 K
Light colour (designation): Warm White
Light colour LED: White
Luminous flux per meter: 3000 lm
Luminous flux: 9000 lm
Luminous efficacy: 127 lm/W
Colour rendering index Ra: >80
Beam angle: 120 Deg
Number of LEDs per meter: 70
Number of LEDs per module: 210
Length: 3000 mm
Width: 8 mm
Height: 1.4 mm
Product weight: 39 g
Length - smallest unit: 100 mm
LED pitch: 14.3 mm
Temperature range in operation: -20 +75 C
Lifespan: 60000 h
Dimmable: Yes
Self-adhesive: Yes
Lowest bending radius: 20 mm
With connection set: Yes
With end piece: No
Standards: EAC/VDE/Acc. to ENEC 10
Type of protection: IP20
Energy efficiency class: A+
Energy consumption: 78 kWh/1000h
Temperature range at storage: -40 +80 C
Commodity code: 940540399000
