Led L Wire For Connection Of 8mm Strips Ip20 Ledclwire8sc

Comus Led L wire for connection of 8mm strips Ip20 LEDCLWIRE8SC LEDCLWIRE8SC

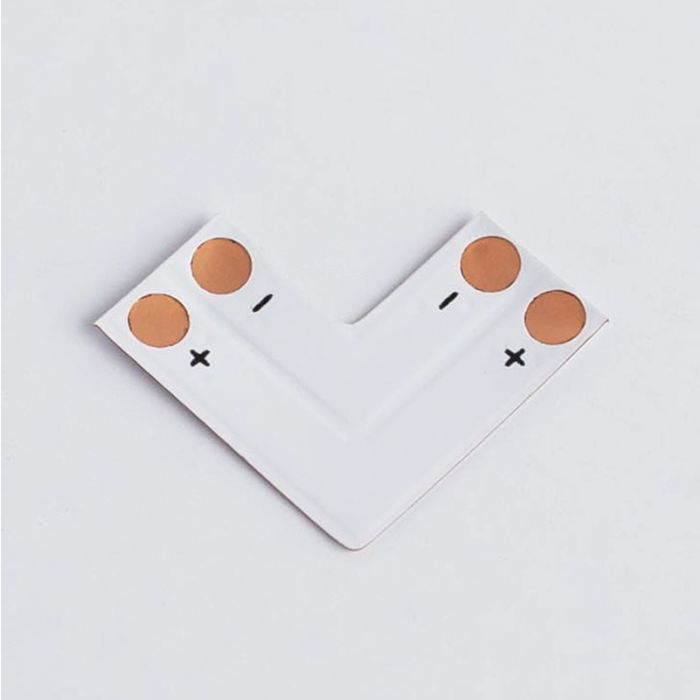

Penn Elcom 2pin quick L wire for 90deg (corner) connection of two 8mm wide LED strips

The L shape wired can be used around corners together with two in-line joiners (LEDCLJ2PIN8 or LEDCLJD2PIN8) to allow a quick connection of two LED strips.

Easy to fit allowing solderless connection. Just unclick the upper part on each free end of the joiners then carefully push each end of the wire inside the joiners until the PCB pad fits below the 2 pins.
Always take note to ensure correct polarity before powering the strips.

This wire can carry a max. current of 3A (so 72W at 24V or 36W at 12V).

Fixing - we strongly recommend the use of a double adhesive tape underneath the joiners or the use of silicone. This will fix the devices in place protecting the start of the LED tape on the long run.

Rated current: 3 A
Max wattage (12/24V): 36/72 W
Compatible joiners (board-to-board connectors): LEDCLJ2PIN8 or LEDCLJD2PIN8
Cable rated insulation voltage: <25 V
Width: 16 mm
Length: 16 mm
Height: <1 mm
Quantity: sold individually
