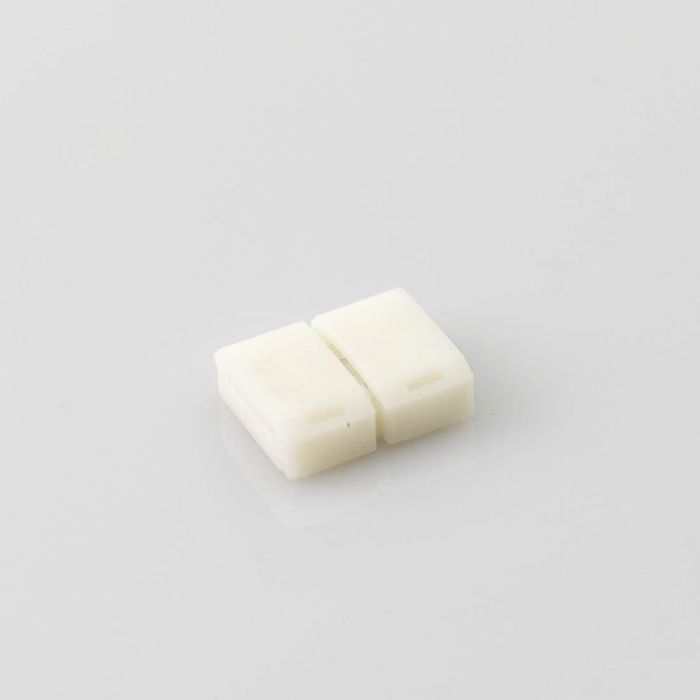

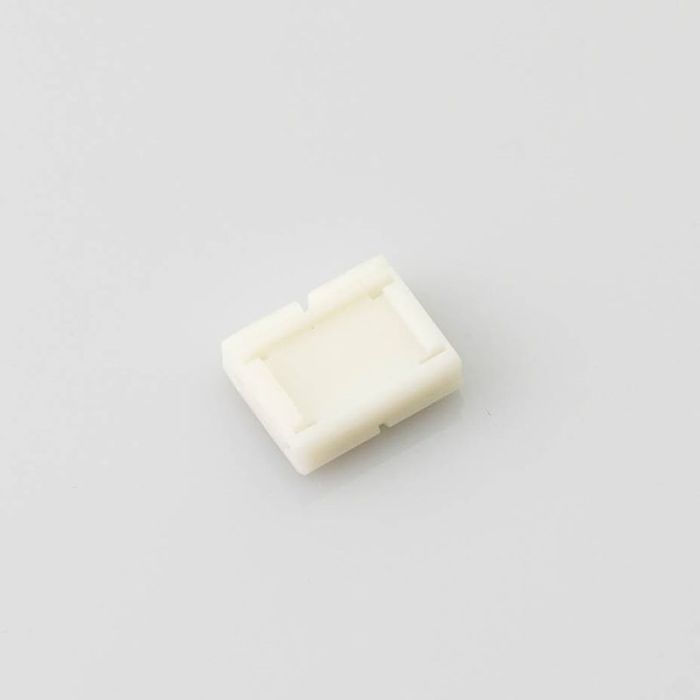

Led In-line Joiner (jumper) For 8mm Strips Ip20 Ledclj2pin8

Be the first to review this product

Availability: In stock

Excl. Vat: £1.75 Incl. Vat: £2.10
OR

Led in-line joiner (jumper) for 8mm strips Ip20 LEDCLJ2PIN8 LEDCLJ2PIN8 By Comus

Led In-line Joiner (jumper) For 8mm Strips Ip20 Ledclj2pin8

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
LED Flex and Modules

Details

Comus Led in-line joiner (jumper) for 8mm strips Ip20 LEDCLJ2PIN8 LEDCLJ2PIN8

Comus 2pin quick in-line joiner (board-to-board connector) for 8mm wide LED strips

This quick to use joiner saves time and effort compared to other joiners avaialble on the market.
It also removes the need to solder on site and reduces wastage by allowing to connect off cuts together.

Easy to use jumper. Just unclick the upper parts of the joiner, carefully push the two 8mm strips inside until the PCB pad fits below the 2 pins on each side.
Always take note to ensure correct polarity before powering the strips.

Compatible with all single colour Osram or Comus LED strips IP20 not wider than 8mm having up 70 LED chips per meter. NOT suitable for the ShortPitch tapes (120LEDs/m).
This power feeder can carry a max. current of 3A (so 72W at 24V or 36W at 12V).

Fixing - we strongly recommend the use of a double adhesive tape underneath the joiner or the use of silicone. This will fix the device in place protecting the start of the LED tape on the long run.

Suitable profiles
With cover - LEDAL01, LEDAL02, LEDAL03, LEDAL04, LEDAL09, LEDAL11, LEDAL12, LEDAL13, LEDAL16, LEDAL20, LEDAL21, LEDAL23, LEDAL24, LEDAL26, LEDAL27, LEDAL29, LEDAL30, LEDAL31, LEDAL32, LEDAL33, LEDAL40, LEDAL41, LEDAL42
Without cover - LEDAL08, LEDAL17, LEDAL19, LEDAL36

Rated current: 3 A
Max wattage (12/24V): 36/72 W
LED strip required width: 8 mm
Cable length: no cable
Rated voltage: <25 V
Width: 13 mm
Length: 20.5 mm
Height: 5 mm
Quantity: sold individually

Additional Information

SKU FAV-LEDCLJ2PIN8
Barcode N/A
Manufacturer Comus
Manfacturer Code LEDCLJ2PIN8
Series N/A
