Comus Led in-line joiner (jumper) for 10mm strips Ip20 LEDCLJD2PIN10 LEDCLJD2PIN10

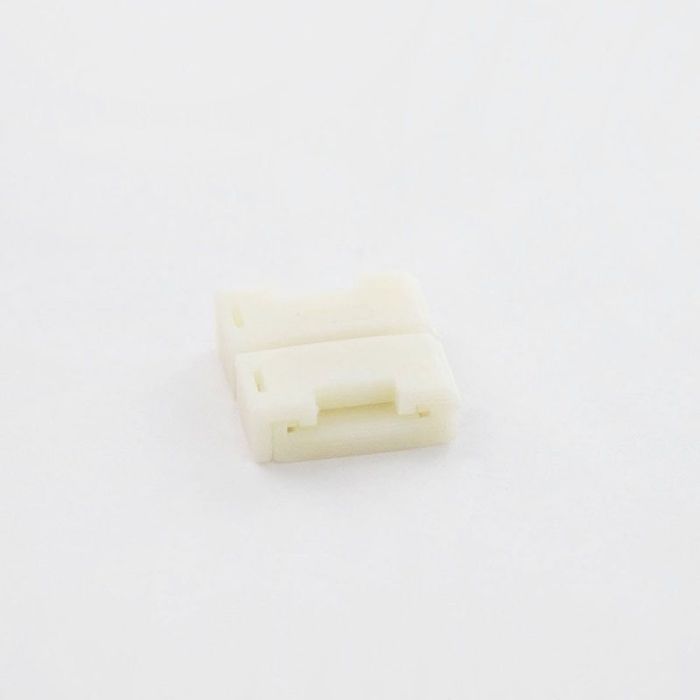

Comus 2pin quick in-line joiner (board-to-board connector) for 10mm wide LED strips - Second Version
This quick to use joiner saves time and effort compared to other joiners avaialble on the market.
It also removes the need to solder on site and reduces wastage by allowing to connect off cuts together.
Easy to use jumper. Just unclick the upper parts of the joiner, carefully push the two 10mm strips inside until the PCB pad fits below the 2 pins on each side.
Always take note to ensure correct polarity before powering the strips.
Compatible with all single colour Osram or Comus LED strips IP20 not wider than 10mm having up to 120 LED chips per meter.
This power feeder can carry a max. current of 3A (so 72W at 24V or 36W at 12V).
Fixing - we strongly recommend the use of a double adhesive tape underneath the joiner or the use of silicone.
This will fix the device in place protecting the start of the LED tape on the long run.
With cover - LEDAL01, LEDAL03, LEDAL09, LEDAL11, LEDAL12, LEDAL13, LEDAL16, LEDAL20, LEDAL21, LEDAL23, LEDAL26, LEDAL27, LEDAL29, LEDAL30, LEDAL31, LEDAL32, LEDAL33, LEDAL40, LEDAL41, LEDAL42
Rated current: 3 A
Max wattage (12/24V): 36/72 W
LED strip required width: 10 mm
Cable length: no cable
Rated voltage: <25 V
Width: 20 mm
Length: 16 mm
Height: 5 mm
Quantity: sold individually
