Details

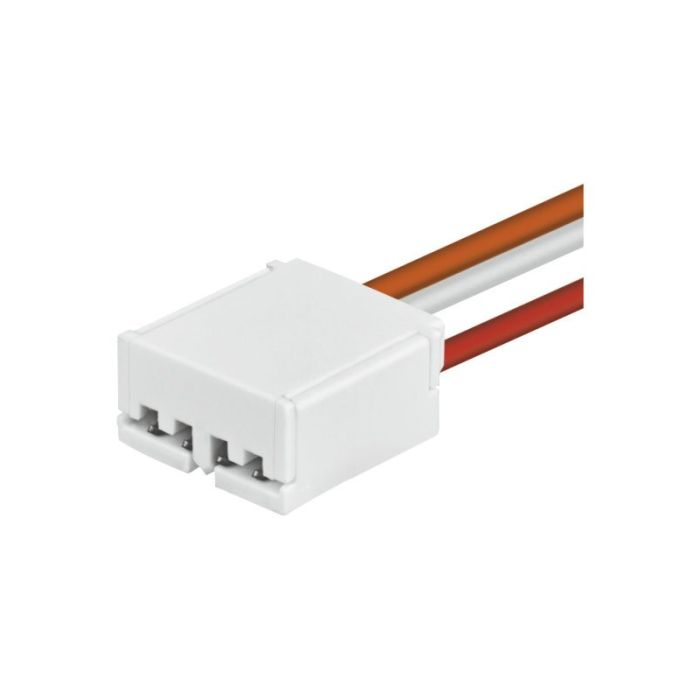

FX -SC08-G2-CT3PF-0500HF

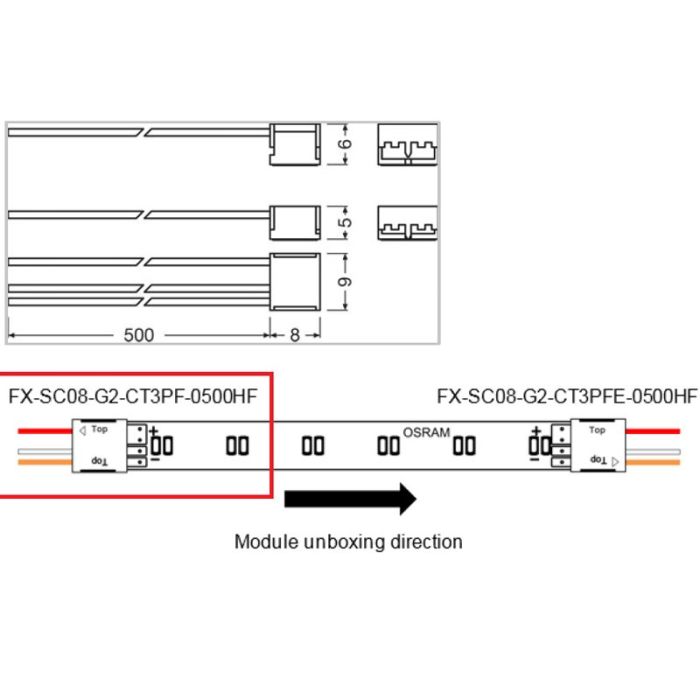

3pin power feeding connector with 50cm cable suitable for Osram flex Tunable White 1200, 2000, 3000 and 4000. Fits only from the left side of the strip.

Product benefits:

Simple installation, no tools or soldering required (CONNECTsystem)
Reduced installation time (CONNECTsystem)
Low profile (CONNECTsystem)
Extremely vibration-proof (CONNECTsystem)
Permissible operating temperature perfectly matched to module (CONNECTsystem)
Can be connected to the front of the module or at division points (CONNECTsystem)

EAN: 4052899482999
Height: 4.8 mm
Length: 509.8 mm
Width: 9.2 mm
Cable length: 500 mm
Rated insulation voltage: < 25 V
Rated current: 5 A
Connector closing force: < 55 N
PCB retention force: = 15 N
Contact resistance: = 30 mO
Conductor cross section AWG: 20
Ambient temperature (storage/transport): -40 +85 C
Ambient temperature (operation) LLT - ULT: -30 - +70 C
Connector part (Inflammability class acc. UL94): V0
Connector part (Insulating material): PBT GF
