Led Flex Power Lfp3000-g3-830-03 3k 24v Ip67 4052899481336

Be the first to review this product

Availability: In stock

Only 1 left

Excl. Vat: £208.27 Incl. Vat: £249.92

Led Flex Power Lfp3000-G3-830-03 3k 24v Ip67 4052899481336 LEDLFP3000830 By

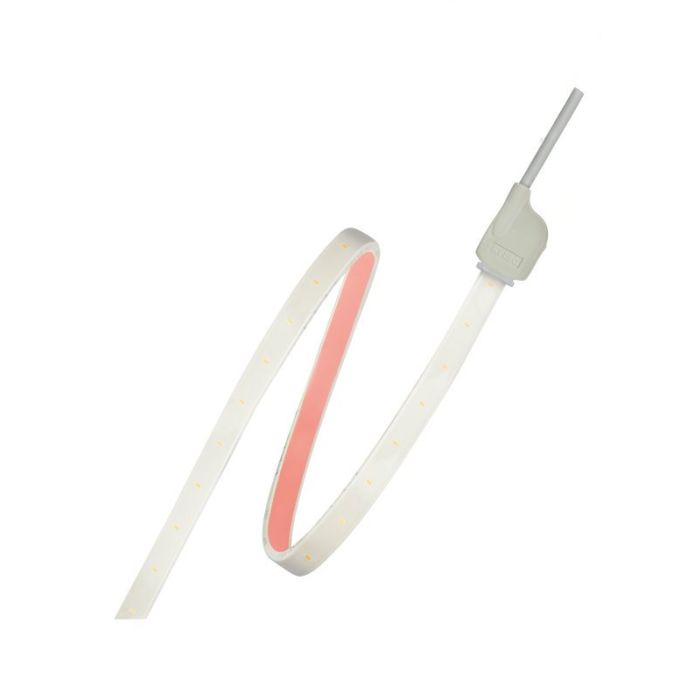

Led Flex Power Lfp3000-g3-830-03 3k 24v Ip67 4052899481336

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
LED Flex and Modules

Details Led Flex Power Lfp3000-G3-830-03 3k 24v Ip67 4052899481336 LEDLFP3000830

LINEARlight FLEX Protect POWER 3000
LFP3000 -G3-830-04

Product Benefits:

High luminous flux
Great design freedom thanks to flexibility and cuttability of module
High-performance silicone for extremely long life and flexibility
Simple connection thanks to premounted connectors
Extraordinary design and high quality materials
Toolless connection only if using the optional CONNECTsystem
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
Outdoor use possible UV and salt mist resistant (UV acc. to ISO 4892-2 - Method A, salt mist acc. to IEC 60068-2-52 severity 1)

Product Features:

Flexible and cuttable LED strip
Luminous flux: up to 3000 lm/m
Type of protection: IP67
Dimmable with PWM technology
Fine White (3.5 SDCM)

Areas of Application:

Facade accent lighting
Ceiling integration
Wall integration
Cove lighting
Machine lighting
Path lighting
Suitable for outdoor use

Equipment / Accessories:

Simplified connection with optional matching CONNECTsystem
Quick installation with optional SLIM TRACK System
Perfectly matched to OPTOTRONIC 24 V electronic control gears reduce

EAN: 4052899481336
Nominal wattage: 86.7 W
Nominal wattage per meter: 28.9 W
Reverse Voltage: 25 V
Nominal voltage: 24 V
Input voltage range: 23-25 V
Type of current: DC
Nominal current: 3.4 A
Colour temperature: 3000 K
Light colour (designation): Warm White
Light colour LED: White
Luminous flux per meter: 3000 lm
Luminous flux: 9000 lm
Luminous efficacy: 104 lm/W
Colour rendering index Ra: >80
Beam angle: 120 Deg
Number of LEDs per meter: 70
Number of LEDs per module: 210
Length: 3000 mm
Width: 11.1 mm
Height: 3.7 mm
Product weight: 195 g
Length - smallest unit: 100 mm
LED pitch: 14.3 mm
Cover material: Silicone
Body material: Silicone
Temperature range in operation: -20 +70 C
Ambient temperature range: -20 +50 C
Lifespan: 60000 h
Dimmable: Yes
Self-adhesive: Yes
Lowest bending radius: 50 mm
With connection set: Yes
With end piece: Yes
Standards: CE/UL/ENEC/EAC/VDE/Acc. to ENEC 10
Type of protection: IP67
Energy efficiency class: A+
Energy consumption: 87 kWh/1000h
Temperature range at storage: -40 +85 C

Additional Information

Barcode N/A
Manfacturer Code LEDLFP3000830
Series N/A
