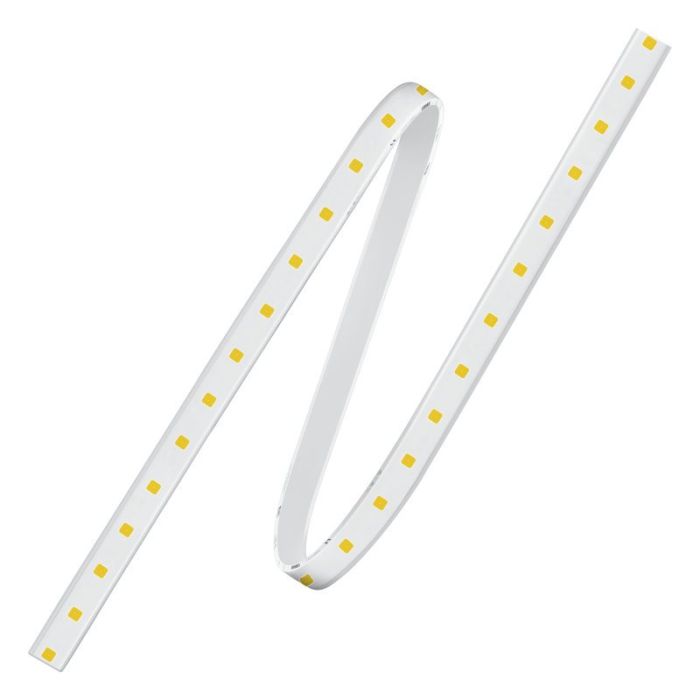

Led Flex Power Lfp1200-g3-830-09 3k 24v Ip67 4052899481664

Be the first to review this product

Availability: In stock

Only 26 left

Excl. Vat: £448.64 Incl. Vat: £538.37
OR

Led Flex Power LFP1200-G3-830-09 3k 24v Ip67 4052899481664 LEDLFP1200830 By First-AV.co.uk

Led Flex Power Lfp1200-g3-830-09 3k 24v Ip67 4052899481664

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
LED Flex and Modules

Details

LINEARlight FLEX PROTECT POWER 1200
LFP1200 -G3-830-09

Product Benefits:

High luminous flux
Great design freedom thanks to flexibility and cuttability of module
High-performance silicone for extremely long life and flexibility
Simple connection thanks to premounted connectors
Extraordinary design and high quality materials
Toolless connection only if using the optional CONNECTsystem
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
Outdoor use possible UV and salt mist resistant (UV acc. to ISO 4892-2 - Method A, salt mist acc. to IEC 60068-2-52 severity 1)

Product Features:

Flexible and cuttable LED strip
Luminous flux up to 1200 lm/m
Type of protection IP67
Dimmable with PWM technology
Fine White (3.5 SDCM)

Areas of Application:

Facade accent lighting
Ceiling integration
Wall integration
Cove lighting
Machine lighting
Path lighting
Suitable for outdoor use

Equipment / Accessories:

Simplified connection with optional matching CONNECTsystem
Quick installation with optional SLIM TRACK System
Perfectly matched to OPTOTRONIC 24 V electronic control gears reduce

EAN: 4052899481626
Nominal wattage: 95.4 W
Nominal wattage per meter: 10.6 W
Reverse Voltage: 25 V
Nominal voltage: 24 V
Input voltage range: 23-25 V
Type of current: DC
Nominal current: 4 A
Colour temperature: 3000 K
Light colour (designation): Warm White
Light colour LED: White
Luminous flux per meter: 1150 lm
Luminous flux: 10350 lm
Luminous efficacy: 103 lm/W
Colour rendering index Ra: >80
Beam angle: 120 Deg
Number of LEDs per meter: 70
Number of LEDs per module: 630
Length: 9000 mm
Width: 11.1 mm
Height: 3.7 mm
Product weight: 523 g
Length - smallest unit: 100 mm
LED pitch: 14.3 mm
Temperature range in operation: -20 +70 C
Lifespan: 60000 h
Dimmable: Yes
Self-adhesive: Yes
Lowest bending radius: 50 mm
With connection set: Yes
With end piece: Yes
Standards: CE/UL/ENEC/EAC/VDE/Acc. to ENEC 10
Type of protection: IP67
Energy efficiency class: A+
Energy consumption: 96 kWh/1000h
Temperature range at storage: -40 +85 C

Datasheets


Product Datasheet Download


Additional Information

SKU FAV-LEDLFP1200830
Barcode N/A
Manufacturer First-AV.co.uk
Manfacturer Code LEDLFP1200830
Series N/A
