Led Flex Lf1200-g3-824-09 Power 24v 24k 4052899953062

Osram Led Flex Lf1200-g3-824-09 Power 24v 24k 4052899953062 LEDLF1200G3824

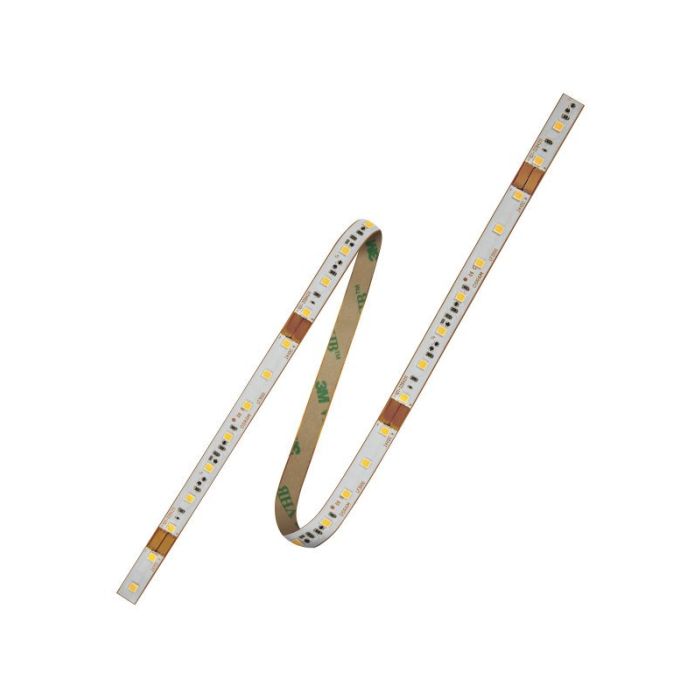

LINEARlight FLEX POWER 1200
LF1200 -G3-827-09

Product benefits:

Large selection of light colors
Great design freedom thanks to flexibility and cuttability of module
Simple mounting and connection
Toolless connection with the optional CONNECTsystem
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
Shop White versions available for great color rendering without yellowing effect
Extraordinary design and high quality materials
Type of protection IP20

Product features:

Flexible and cuttable LED strip
Luminous flux up to 1200 lm/m
Module efficacy up to 152 lm/W
Dimmable with PWM technology
Fine White (3 SDCM)

Areas of application:

Architecture lighting
Cove lighting
Ceiling integration
Wall integration

Equipment / Accessories:

Simplified connection with optional matching CONNECTsystem
Quick installation with optional SLIM TRACK System
Perfectly matched to OPTOTRONIC 24 V electronic control gears reduce

Note:

The lifetime of LED FLEX is reduced if the LEDs get too hot.
Heat management is best achieved with aluminium profiles, see link
https://www.pennelcomonline.com/en/LED-Aluminium-Profiles/c-302.aspx

In addition to acting as a heat sink, profiles provide protection and can often enhance the appearance with use of a diffuser.
All high powered LED flex require heat management and this product should be used with a suitable profile.

Technical data:

EAN: 4052899953079
Nominal wattage: 95.7 W
Nominal wattage per meter: 10.6 W
Reverse Voltage: 25 V
Nominal voltage: 24 V
Input voltage range: 23-25 V
Type of current: DC
Nominal current: 3.9 A
Colour temperature: 2400 K
Light colour (designation): Warm Comfort Light
Light colour LED: White
Luminous flux per meter: 1200 lm
Luminous flux: 10800 lm
Luminous efficacy: 113 lm/W
Standard deviation of color matching: <= 3 sdcm
Colour rendering index Ra: >80
Beam angle: 120 Deg
Number of LEDs per smallest unit: 7
Number of LEDs per meter: 70
Number of LEDs per module: 630
Length: 9000 mm
Width: 8 mm
Height: 1.4 mm
Product weight: 116 g
Length - smallest unit: 100 mm
LED pitch: 14.3 mm
Rated lamp life time: 60000 h
Nominal lamp life time: 60000 h
Lumen main.fact.at end of nom. life time: 0.70
Number of switching cycles: >= 15000
Dimmable: Yes
Self-adhesive: Yes
Lowest bending radius: 20 mm
With connection set: Yes
With end piece: No
Standards: CE/UL/ENEC/EAC/VDE/Acc. to ENEC 10
Type of protection: IP00
Energy efficiency class: A+
Energy consumption: 105 kWh/1000h
Performance temp. acc. to IEC 62717: 45 C
Temperature range in operation at Tc point: -20 +90 C
Ambient temperature range: -20 +50 C
Temperature range at storage: -40 +80 C
Commodity code: 940540399000
