Led Driver Ot 60/220-240/24 P 24v 60w 4052899545960

Be the first to review this product

Availability: Out of stock

Excl. Vat: £30.37 Incl. Vat: £36.44

Led Driver Ot 60/220-240/24 P 24v 60w 4052899545960 LEDOT6024P

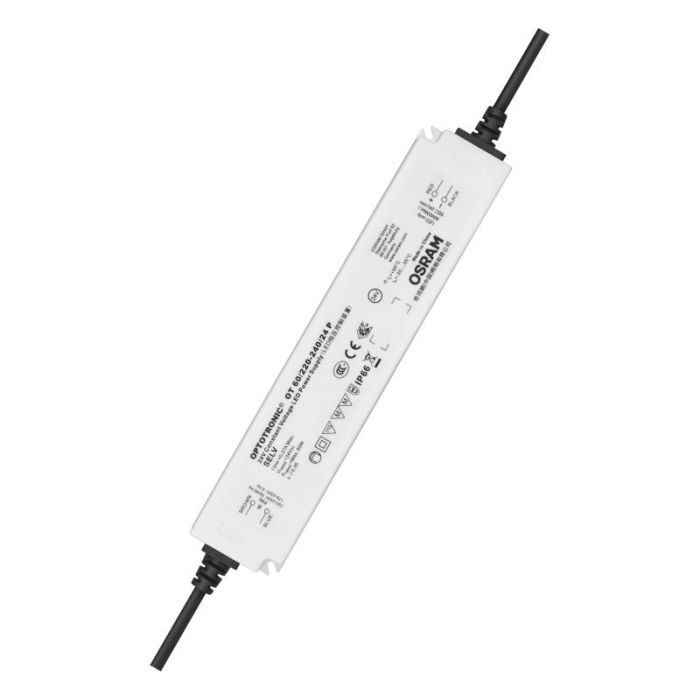

Led Driver Ot 60/220-240/24 P 24v 60w 4052899545960

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
LED Power Supply and Control Gear

Details

Led Driver Ot 60/220-240/24 P 24v 60w 4052899545960 LEDOT6024P

CV Power supplies 24 V

Remove the limitations when you install light outside, with OPTOTRONIC CV 24 V power supplies.
Ruggedly built, if you need a constant voltage source that can cope with damp or wet conditions and extremes of temperature, then a product from this range could be just what you need.
These drivers are suitable for use in tight, flat luminaires and in suspended ceilings, and may be used outdoors (only within suitable luminaires).
If you are creating signage, OPTOTRONIC CV 24 V power supplies work well with OSRAM signage LED modules such as BackLED and BoxLED, and in other settings they can be paired with suitably robust and protected modules such as LINEARlight Flex Protect, to give great performance, reliability and efficiency.
All have a Smart Power Supply feature, and come with a 5 year guarantee.

Product benefits

Large range of products from 20 W to 250 W
Installation in very cold and hot environments
Very stable output power
High electronical reversible short-circuit, overload, overtemperature protection
Smart Power Supply boosting power to turn on cold LEDs
Independent installation possible

Product features

DC mode functionality
Type of protection IP66 and IP67
Surge protection: up to 4 kV (L-N) / 6 kV (L/N-PE)
Wide operating temperature range -30 +55 C
Lifetime up to 50000 h (temperature at max. tc)

Areas of application

Facades, public squares, cruise ships
Signage
Education
Hospitality
Backlighting
Light advertising
Museums
Monuments
Facade illumination
Architectural
Decorative
Suitable for indoor and outdoor installations

EAN: 4052899545960
Nominal voltage: 220-240 V
Mains frequency: 0-60 Hz
Input voltage AC: 198-264 V
Input voltage DC: 176-250 V
Total harmonic distortion: < 15 %
Power factor: 0.95
ECG efficiency: 87 %
Device power loss: 8.9 W
Inrush current: 30 A
Max. ECG no. on circuit breaker 10 A (B): 21
Max. ECG no. on circuit breaker 16 A (B): 34
Max. ECG no. on circuit breaker 25 A (B): 53
Surge capability (L-N): 4 kV
Nominal output voltage: 24.2 V
Nominal output power: 60 W
Galvanic isolation: SELV
Galvanic isolation primary/secondary: 3 kV
Length: 208 mm
Width: 43 mm
Height: 26 mm
Mounting hole spacing, length: 199 mm
Product weight: 420 g
Cable cross-section, input side: 1 sqmm
Cable cross-section, output side: 1 sqmm
Wire preparation length, input side: 90 mm
Wire preparation length, output side: 90 mm
Cable/wire length, input side: 300 mm
Cable/wire length, output side: 300 mm
Casing material: Plastic
Ambient temperature range: -30 +55 C
Maximum temperature at tc test point: 90 C
Max.housing temperature in case of fault: 110 C
Permitted rel. humidity during operation: 5-85 %
ECG lifetime: 50000 h
Encapsulated: Yes
Dimmable: No
Overheating protection: Yes
Overload protection: Yes
Short-circuit protection: Yes
No-load proof: Yes
Suitable for fixtures with prot. class: II
Type of connection, output side: Cables
Number of channels: 1
Approval marks: ENEC/RCM/CCC/EAC
Standards Acc. to EN 61000-3-3/Acc. to EN 60598-1/Acc. to EN 62384
Protection class: II
Type of protection: IP66
Temperature range at storage: -40 +85 C?
