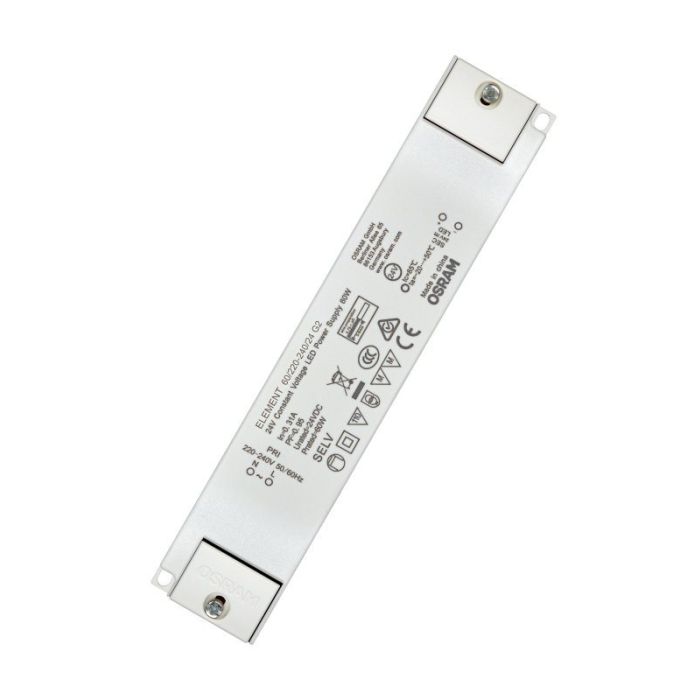

Led Driver 60/220-240/24 Element 60w 24v 4052899605527

Osram Led Driver 60/220-240/24 Element 60w 24v 4052899605527 LEDECV6024

ELEMENT - Constant Voltage - Non dimmable
ELEMENT 60/220-240/24

Product family benefits
High efficiency (up to 91 %)
Higher quality of light thanks to < 3% output ripple current
Excellent price/performance ratio
Class II design for wide application
3 years guarantee

Product family features
Linear form factor
Power factor >0.95 at full load
Total Harmonic Distortion (THD) < 15%
Output voltage tolerance < 3%
Up to 30000h at Tc max / up to 50000h at Tc -10 C
Lifetime up to 30000h (temperature at max. tc)

Areas of application
Decorative lighting in hospitality, restaurants and Shops
Shelf lighting
Cove lighting
Under cabinet lighting

Technical specification

EAN: 4052899605527 (was 4052899463790)
Nominal voltage: 220-240 V
Mains frequency: 50/60 Hz
Input voltage AC: 198-264 V
Power factor: > 0.95
ECG efficiency: 88 %
Device power loss: 8.2 W
Inrush current: < 25 A
Max. ECG no. on circuit breaker 10 A (B): 10
Max. ECG no. on circuit breaker 10 A (C): 16
Max. ECG no. on circuit breaker 16 A (B): 15
Max. ECG no. on circuit breaker 16 A (C): 26
Max. ECG no. on circuit breaker 25 A (B): 24
Surge capability (L/N-Ground): 1 kV
Surge capability (L-N): 1 kV
Nominal output voltage: 24 V
Nominal output power: 60 W
Galvanic isolation: primary/secondary 3 kV
Output ripple Voltage (100 Hz): < 3 %
Mounting hole spacing, length: 192 mm
Product weight: 184.00 g
Cable cross-section, input side: 0.75 - 1.5 sqmm
Cable cross-section, output side: 0.75 - 1.5 sqmm
Wire preparation length, input side: 5.0 mm
Length: 200 mm
Width: 40.0 mm
Height: 31.0 mm
Casing material: Plastic
Ambient temperature range: -20 +50 C
Maximum temperature at tc test point: 85 C
Max.housing temperature in case of fault: 110 C
Temperature range at storage: -40 +85 C
Permitted rel. humidity during operation: 5-85 %
ECG lifetime: 30000 h
Encapsulated: Yes
Dimmable: No
Overheating protection: Yes
Overload protection: Yes
Short-circuit protection: Yes
Suitable for fixtures with prot. class: I/II
Number of channels: 1
Approval marks - approval: CE / RCM / CCC / MM
Standards: Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to IEC 61000-3-2/Acc. to CISPR 15/Acc. to IEC 61000-3-3/Acc. to IEC 61547
Type of protection: IP20
Commodity code: 850440829000
