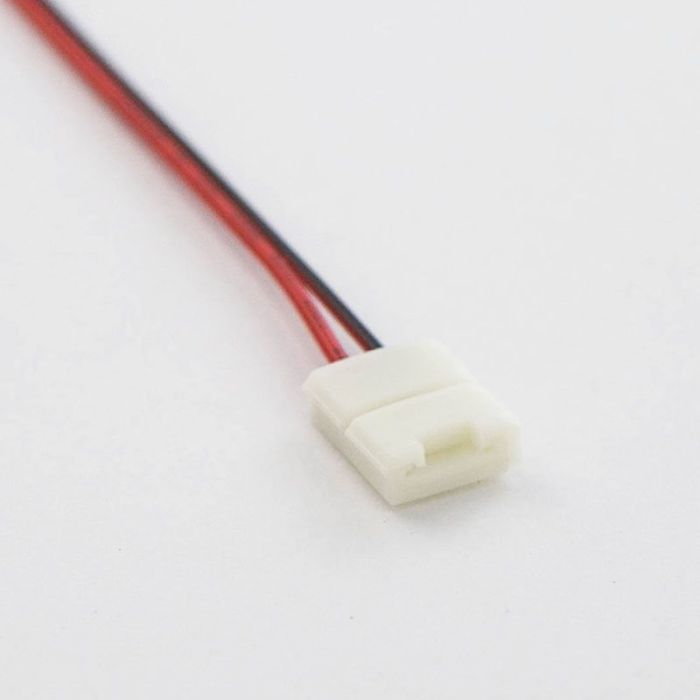

Led corner joiner (jumper) for 8mm single colour strips Ip20 LEDCLJW2PIN8 LEDCLJW2PIN8 By Comus

Led Corner Joiner (jumper) For 8mm Single Colour Strips Ip20 Ledcljw2pin8

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
LED Flex and Modules

Details

Comus Led corner joiner (jumper) for 8mm single colour strips Ip20 LEDCLJW2PIN8 LEDCLJW2PIN8

Comus 2pin quick corner joiner (board-to-board connector) with 135mm extension cable for 8mm wide LED strips

This quick to use joiner saves time and effort compared to other joiners avaialble on the market.
It also removes the need to solder on site and reduces wastage by allowing to connect off cuts together.

Easy to use jumper. Just unclick the upper part on each end of the joiner, carefully push the two 8mm strips inside until the PCB pad fits below the 2 pins.
Always take note to ensure correct polarity before powering the strips.

Compatible with all single colour Osram or Comus LED strips IP20 not wider than 8mm having up 120 LED chips per meter (including ShortPitch).
This power feeder can carry a max. current of 3A (so 72W at 24V or 36W at 12V).

Fixing - we strongly recommend the use of a double adhesive tape underneath the joiner or the use of silicone. This will fix the device in place protecting the start of the LED tape on the long run.

Suitable profiles
With cover - LEDAL01, LEDAL02, LEDAL03, LEDAL04, LEDAL09, LEDAL11, LEDAL12, LEDAL13, LEDAL16, LEDAL20, LEDAL21, LEDAL23, LEDAL24, LEDAL26, LEDAL27, LEDAL29, LEDAL30, LEDAL31, LEDAL32, LEDAL33, LEDAL40, LEDAL41, LEDAL42
Without cover - LEDAL08, LEDAL17, LEDAL19, LEDAL36

Rated current: 3 A
Max wattage (12/24V): 36/72 W
LED strip required width: 8 mm
Cable length: 135 mm
Conductor cross section AWG: 22 (0.33 sqmm)
Cable rated insulation voltage: 300 V
Width: 12.5 mm
Length (including cable): 168 mm
Height: 5 mm
Quantity: sold individually

Additional Information

SKU FAV-LEDCLJW2PIN8
Barcode N/A
Manufacturer Comus
Manfacturer Code LEDCLJW2PIN8
Series N/A
