Led Connector For 10mm Tunable White Strips Ip20 Ledclc3pin10

Comus Led connector for 10mm Tunable White strips Ip20 LEDCLC3PIN10 LEDCLC3PIN10

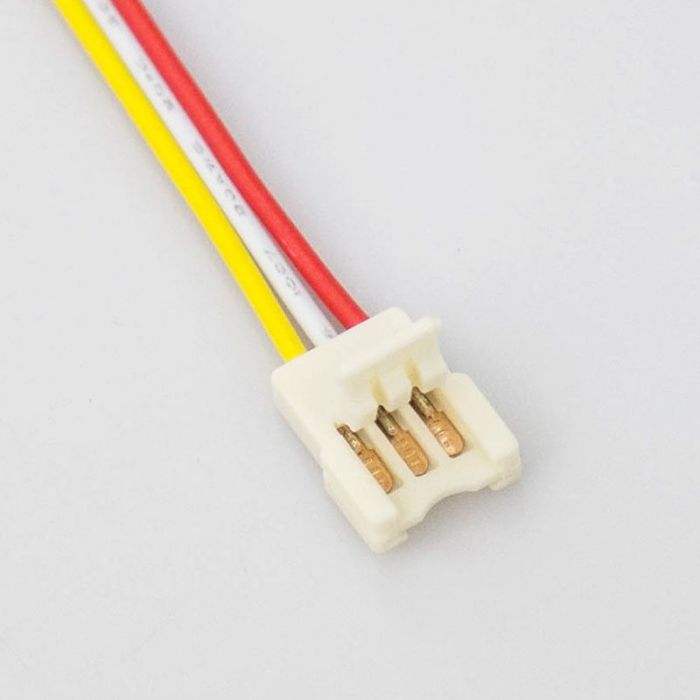

Penn Elcom 3pin connector for 10mm wide Tunable White LED strips

This quick to use connector saves time and effort compared to other connectors available on the market.
It also removes the need to solder on site.

Easy to use connector. Carefully push the LED strip into the existing upper slot.
Always take note to ensure correct polarity before powering the strip.

Compatible with all 10mm wide Tunable White Penn Elcom LED strips IP20.
This power feeder can carry a max. current of 5A (so 120W at 24V or 60W at 12V).

Fixing - we strongly recommend the use of a double adhesive tape underneath the connector or the use of silicone. This will fix the connector in place along with the LED tape connected to it.
Suitable profiles
With cover - LEDAL01, LEDAL03, LEDAL09, LEDAL16, LEDAL20, LEDAL21, LEDAL23, LEDAL26, LEDAL27, LEDAL29, LEDAL30, LEDAL31, LEDAL32, LEDAL33, LEDAL40, LEDAL41, LEDAL42

Rated current: 5 A
Max wattage (12/24V): 60/120 W
LED strip required width: 10 mm
Cable length: 140
Conductor cross section AWG: 22 (0.33 sqmm)
Cable rated insulation voltage: 12/24 V
Width: 12.5 mm
Length: 16 mm
Height: 5 mm
Quantity: sold individually
