Led 3ch Rf Receiver For Rgb Flex R3c

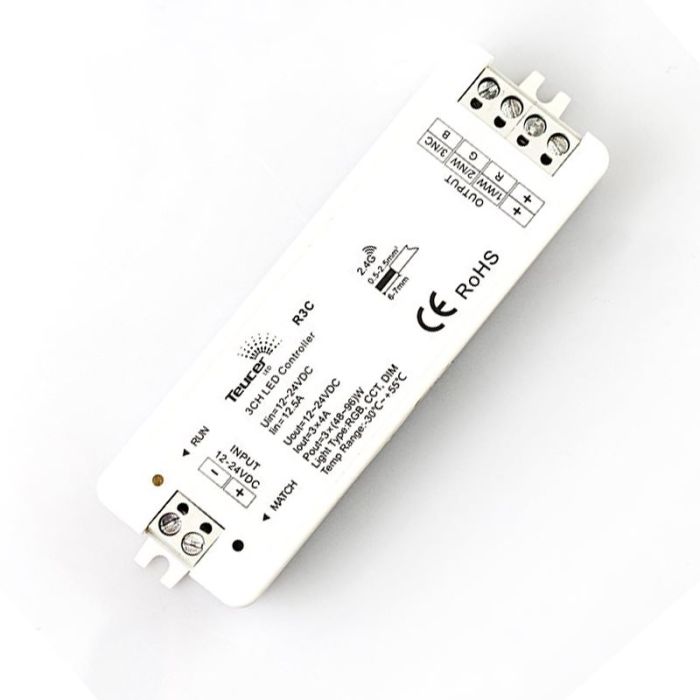

Teucer Led 3Ch Rf Receiver for Rgb flex R3C LEDR3C

R3C 3 channels receiver for use with RF controllers and RGB LED strips

Use with LEDWP4RGBWN RF RGB 1-4 zones wall controller.
Use with LEDLRRGB RF RGB single zone remote controller.
Use with LEDLR4WN RF Single colour 1-4 zones remote controller.

For wiring instructions please see datasheets.

Product features

Use with RF controllers for wireless control and dimming.
DIP switch selection for 4 Zones or 4 Scenes.
Master-slave configuration possible when several receivers are used.

Manufacturers Code: R3C
Type: Constant Voltage
Control method: RF
Input Voltage: 12/24 Vdc
Output Voltage: 12/24 Vdc
Output Current: 3x 4A
Output Power: 3x (48/96W)
Dimmable: Yes
Output dimming pathern: PWM
Dimming range: 10-100 %
Current per circuit: 12 A
Fixture: Double side tape
Length: 97 mm
Width: 33 mm
Height: 18 mm
IP rating: 20
Warranty: 3 Yr
